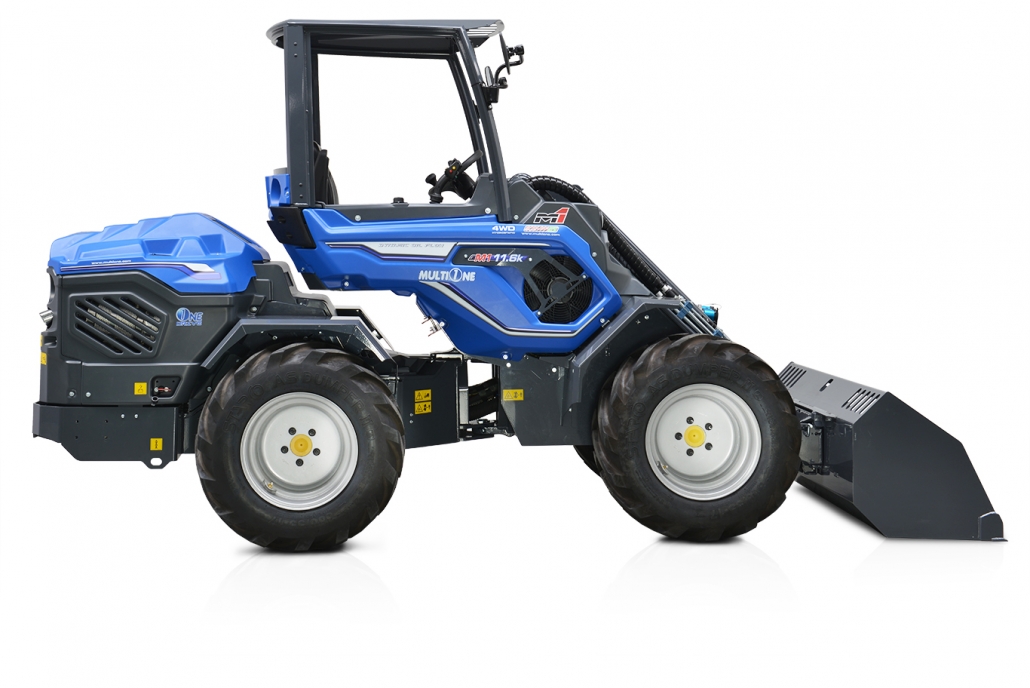

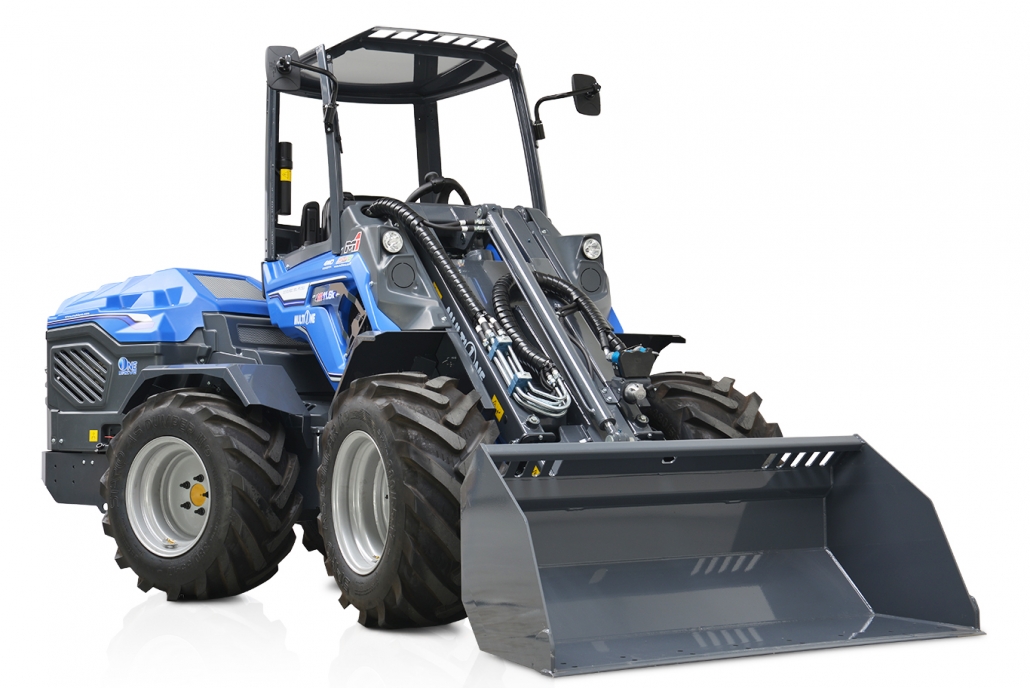

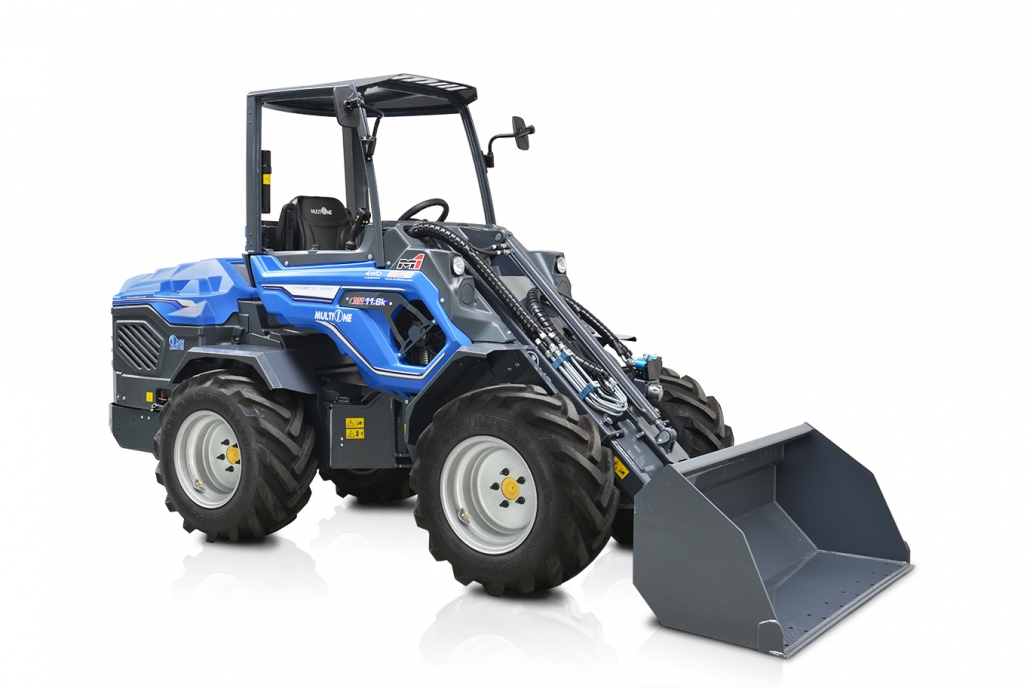

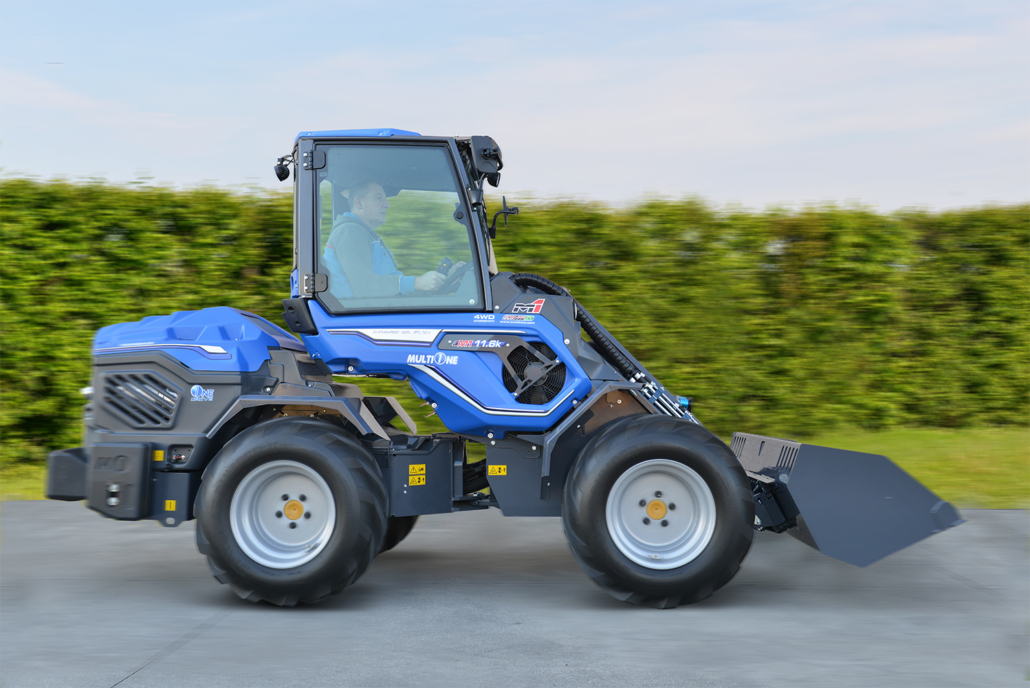

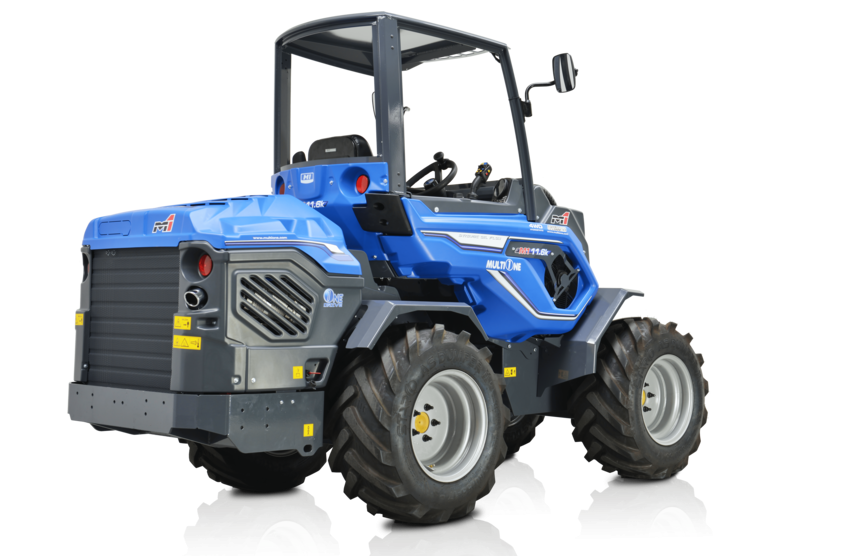

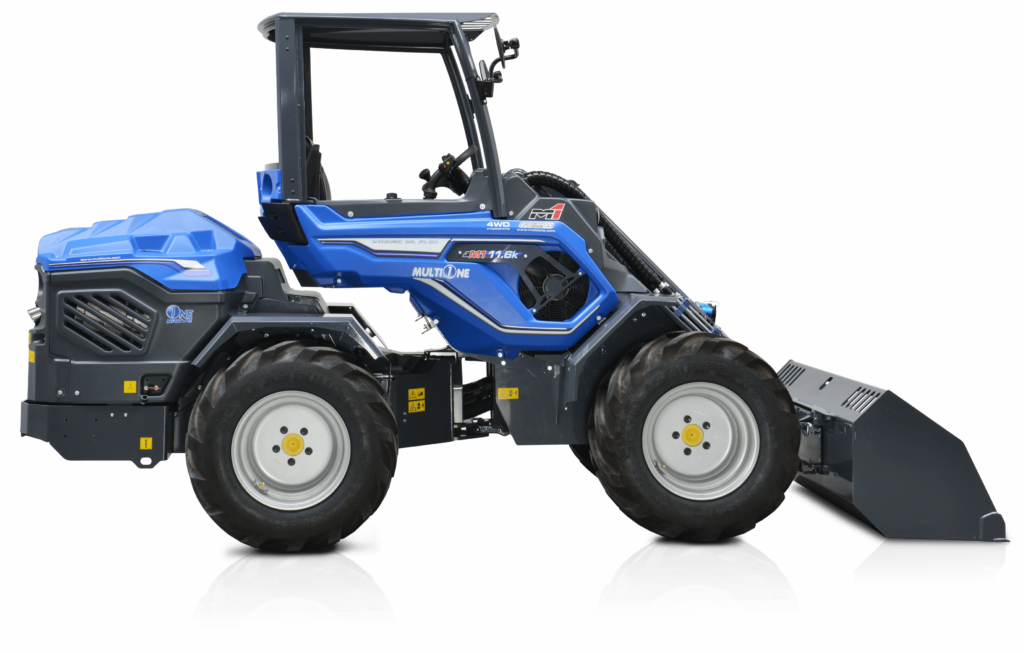

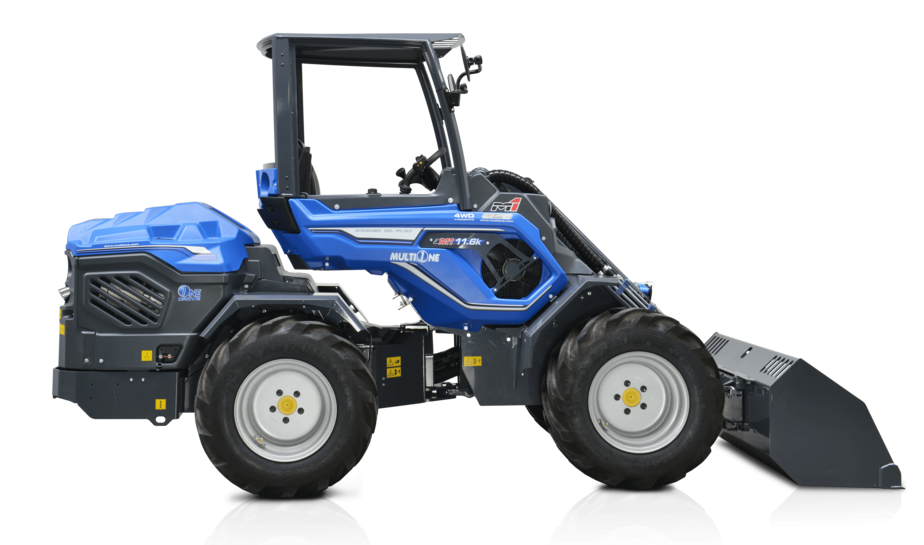

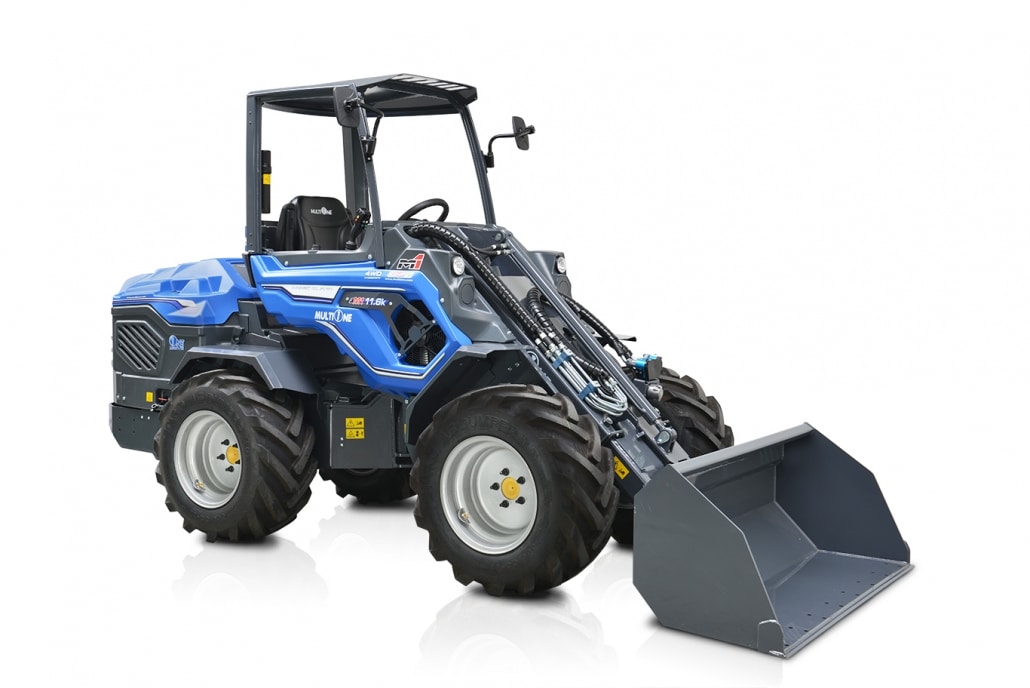

The new MultiOne flagship. The new market benchmark.
11 series come with all the new astonishing MultiOne features like OneDrive, Cruise Control, ACI and Unbreakable Body Panels.
And of top of that, 11 series sets a new stand of high speed, tipping load, and lifting height.
Simply the best in class multifunctional compact loader.
11 SERIES PLUS:
- Impressive Lifting Capacity

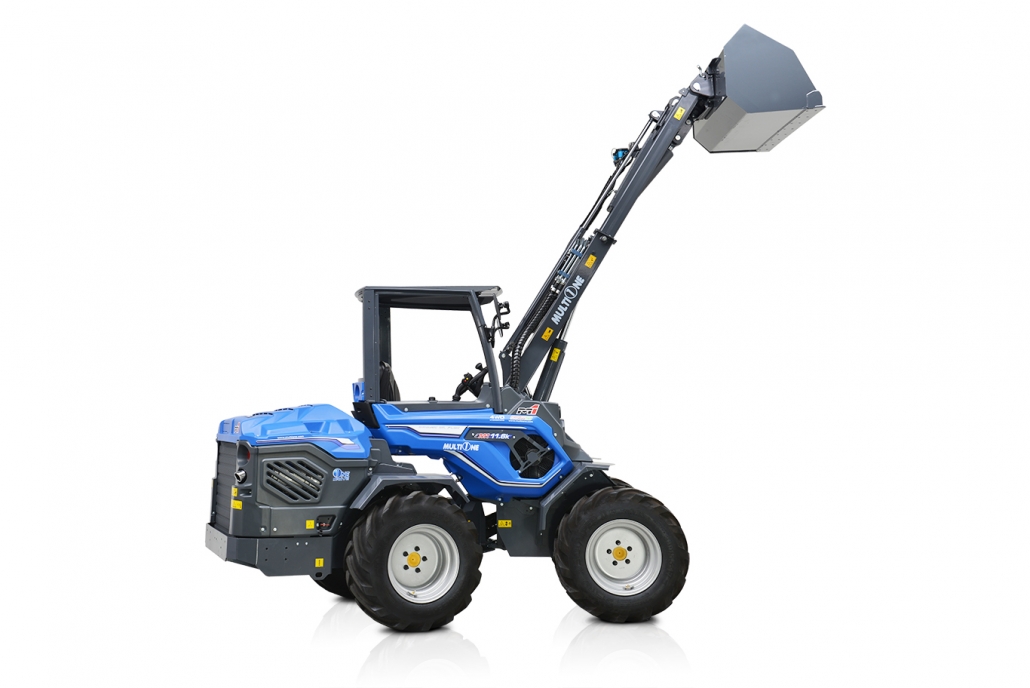

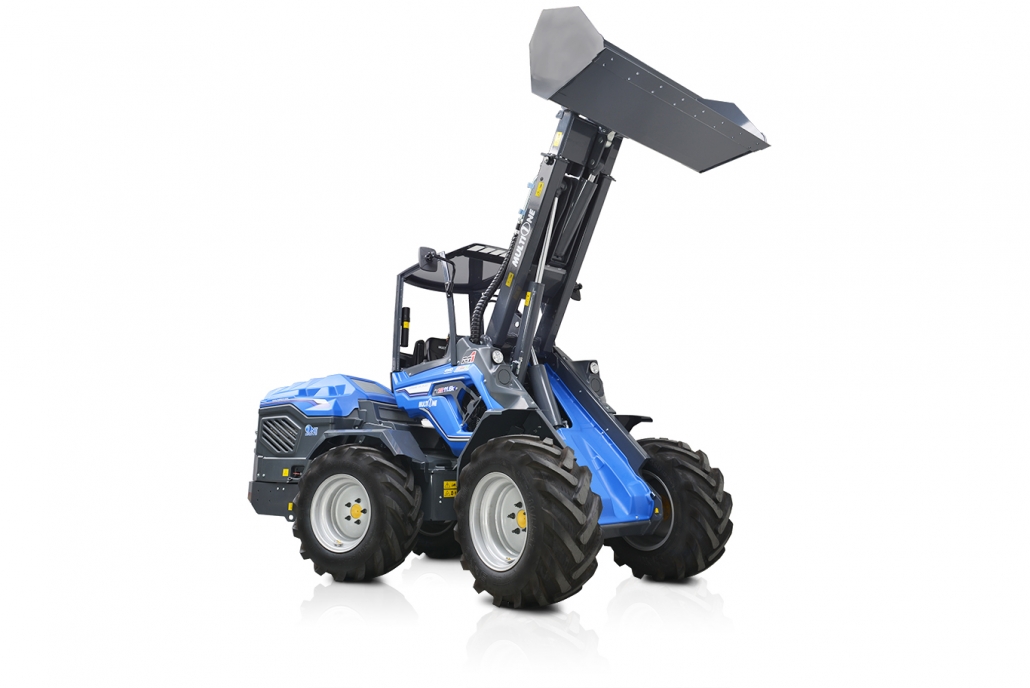

- Best in class Lifting Height
- OneDrive, Cruise Control, ACI and Unbreakable Body Panels.
















Features

Aci
ACI system allows the driver to control the attachments movements without the need for separate control boxes, cables or additional wiring.
The connection to the attachments is made by a 7-poles metal plug.

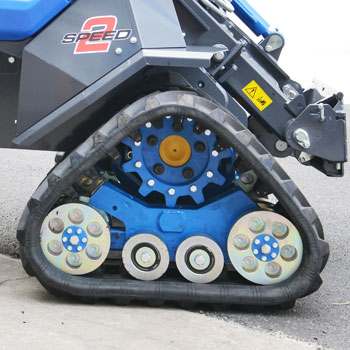

2 Speed
Electro-hydraulic speed regulation
Cruise control
The cruise control is a great feature of OneDrive, as all attachments that require constant speed are now very easy to run: just set the working speed and the OneDrive will do the job for you.
Constant speed will give perfect results on the job site with a variety of attachments. The Cruise Control is activated by the joystick.

DBS (dynamic block system)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.

Torque divider
It acts on all four wheels simultaneously to attain maximum performance. Traction even on impossible grounds with mud or snow.

Unbreakable body panels
The resistance and flexibility of the compound used on the new body cover let the panel absorb shocks, deforms and go back to original shape.

Hydraulic oil cooler
System for cooling the hydraulic circuit oil

Rops-fops level i
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.

Ergonomic heated seat
Ideal for cold climates, it significantly increases the comfort of the machine.

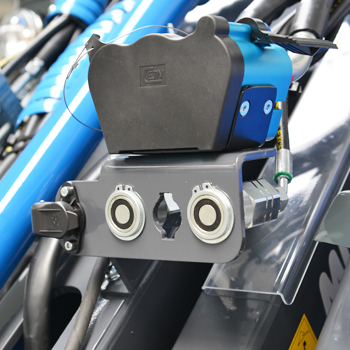

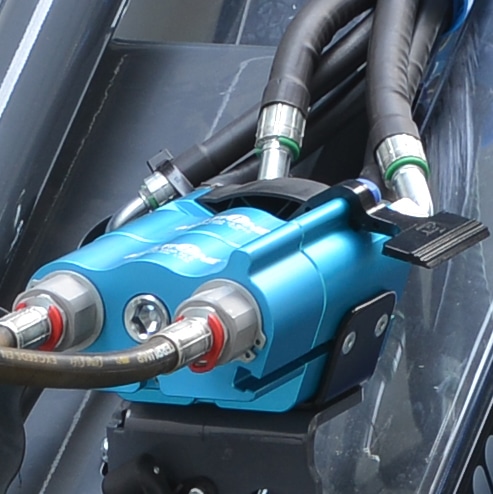

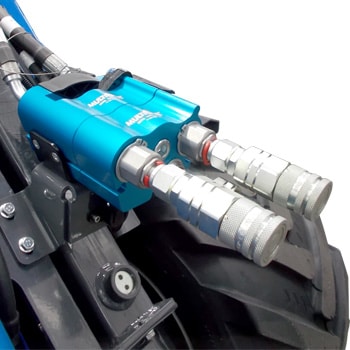

Hydraulic multiconnection
Electro-hydraulic speed regulation

Radial piston wheel motor
High performance, high torque cam-lobe radial-piston hydraulic motors.

Radial piston wheel motor
High performance, high torque cam-lobe radial-piston hydraulic motors.

2 front working lights
2 front working light to illuminate the working area

Lcd grapic display with programmed service
LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)
Hi flow
Additional pump that increases the outlets oil flow.

Electronic throttle control
ETC – Electronic Throttle Control
One-drive
The Multione OneDrive increases the transmission performance while reducing heat and fuel consumption.
The system provides a smooth but rock solid control on the foot pedals and reduces the fatigue during long operation hours.
It allows a wider speed range control, and the improved efficiency allows to reach very high travel speed and increases the components lifetime.
Multi-disk parking brake
Multiple Disc Brakes spring loaded and hydraulically released.
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo

Multi functions joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.
Technical data
11.6 K Stage V | 11.9 K Stage V | 11.5 Y Stage III A | |
---|---|---|---|
Lifting Capacity Straight, Max (*) | 2.540 kg | 2.620 kg | 2.540 kg |
Power | 57 hp | 75 hp | 50 hp |
Speed | 15-30 km/h | 17-35 km/h | 12-25 km/h |
Flow rate | 84 l/min | 95 l/min | 85 l/min |
Lift Height | 3,7 m | 3,7 m | 3,7 m |
Pushing Force (c) | 2.650 kgf | 2.650 kgf | 2.650 kgf |
Weight | 2.320 kg | 2.400 kg | 2.280 kg |
(1) Maximum speed that can be achieved with the largest diameter tires available, on a flat surface and machine without attachments.
(2) Tipping limit, when the machine is straight, with rear weights and boom lifted just off the ground. Weight of attachment included.
(3) Maximum load that can be lifted just off the ground when the machine is straight and with rear weights. Weight of attachment is included.
Note: Refer to the Operator’s manual for the comprehensive load diagram.
