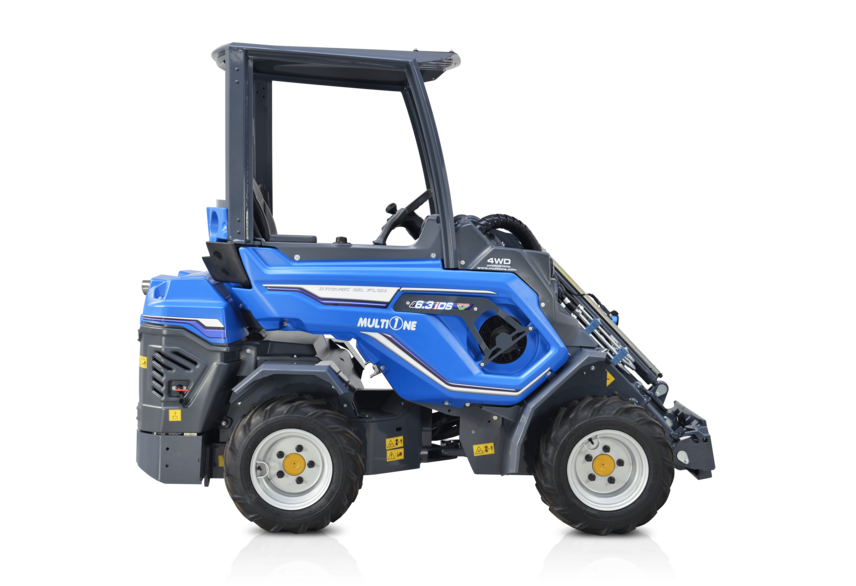

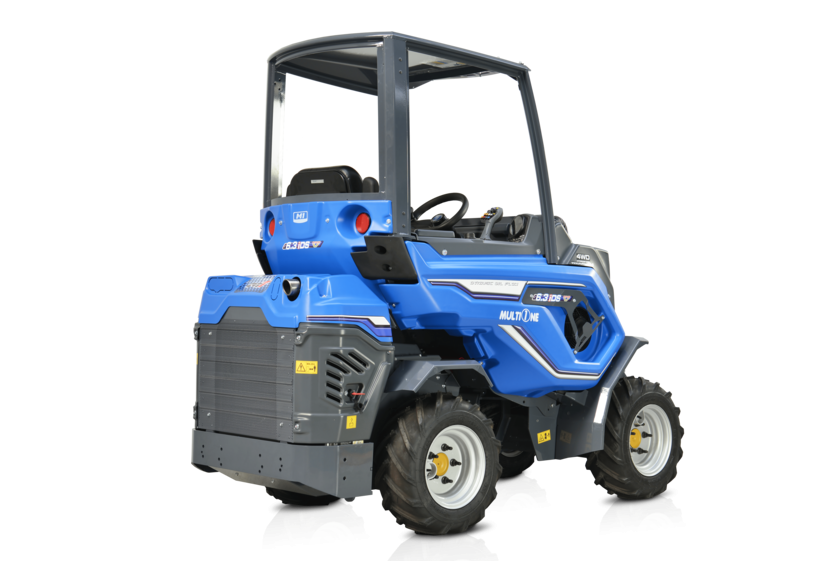

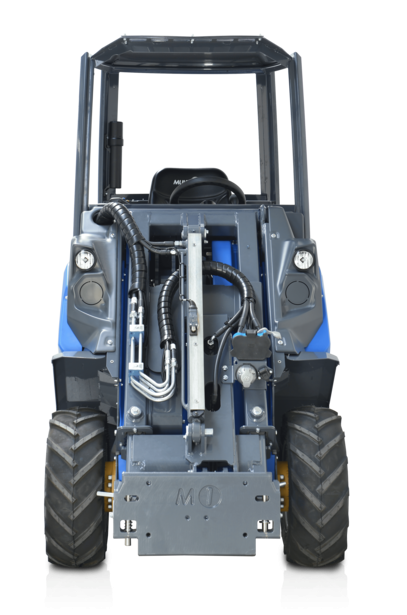

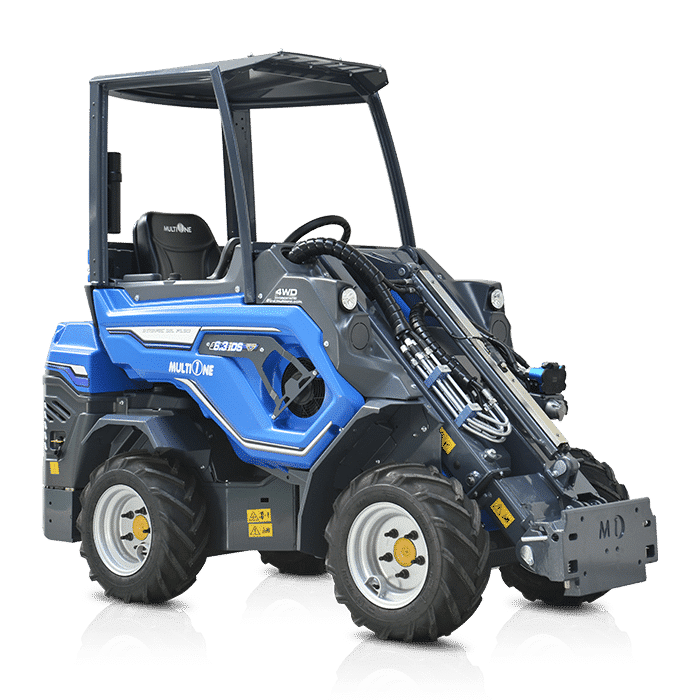

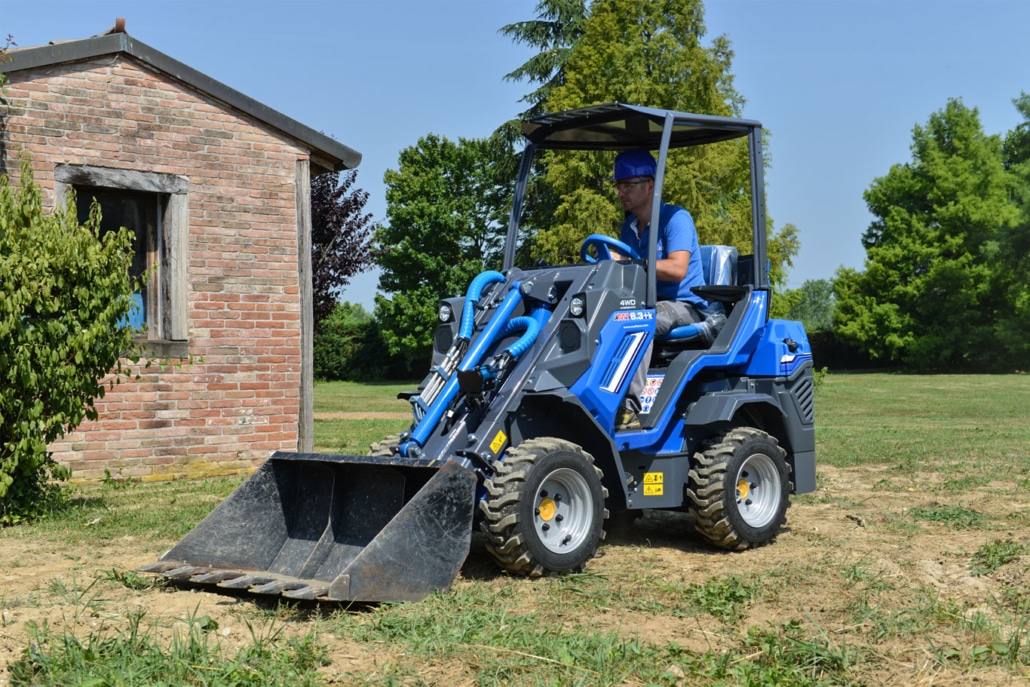

6 iDS
MultiOne 6 series loaders are the first in the Heavy duty range of loaders.
The incredible small size of the MultiOne 6 series is much more extraordinary if compared to the lifting capacity of these small but powerful mini loaders. With a lifting capacity of over 1100 kg they can do serious work, but they’re compact enough to make it easy to transport them to the job site. These mini loader weigh only 1400 kg’s making it suitable to be transported with ease from site to site in a very cost effective manner.

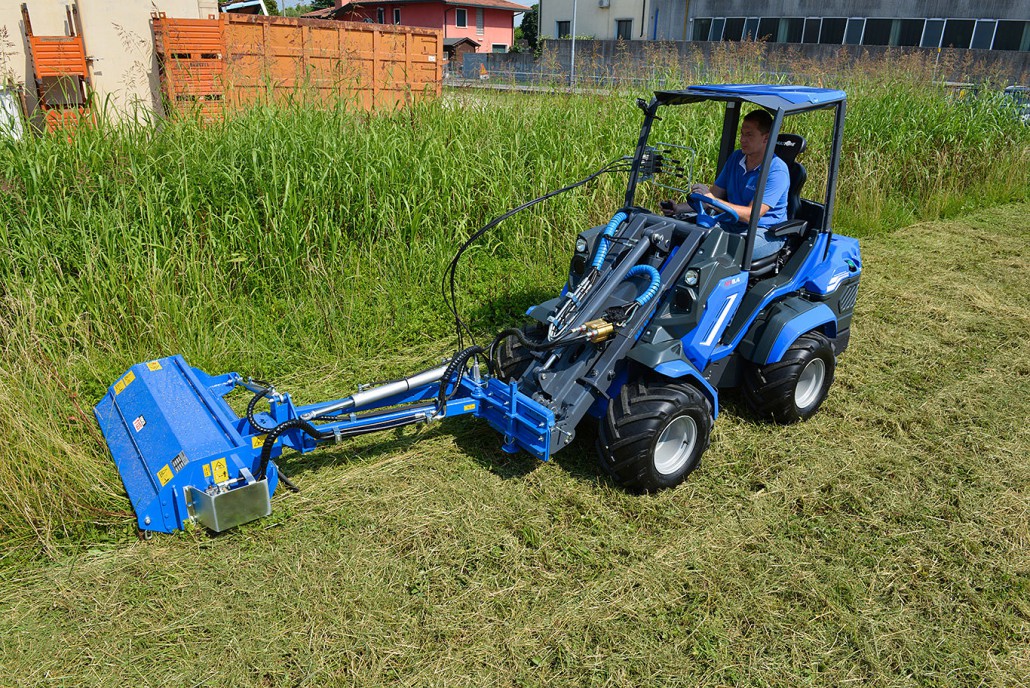

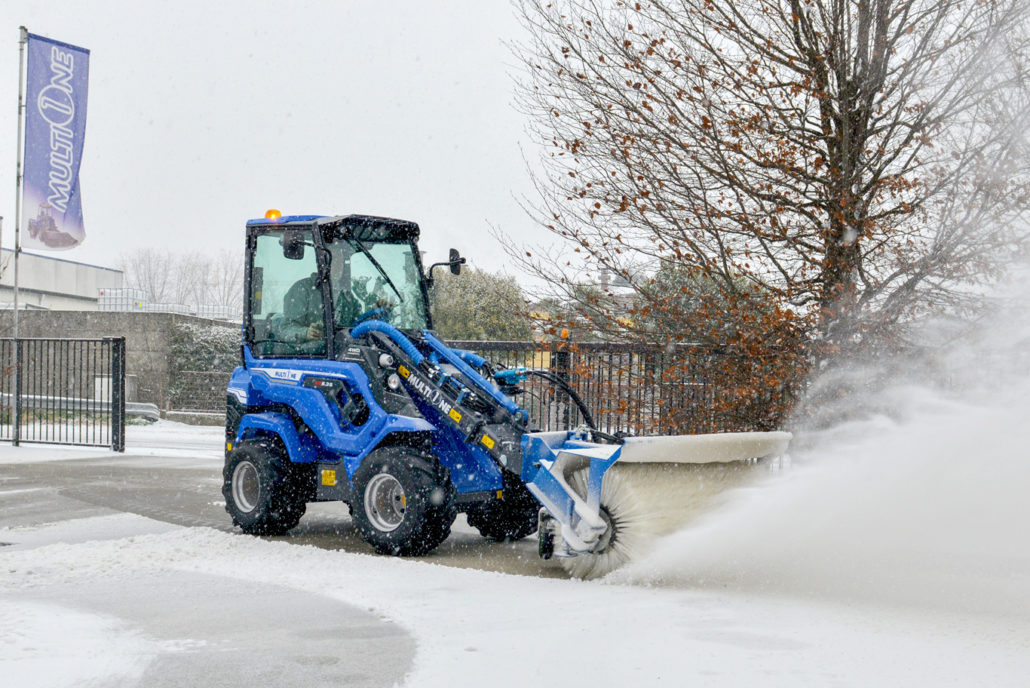

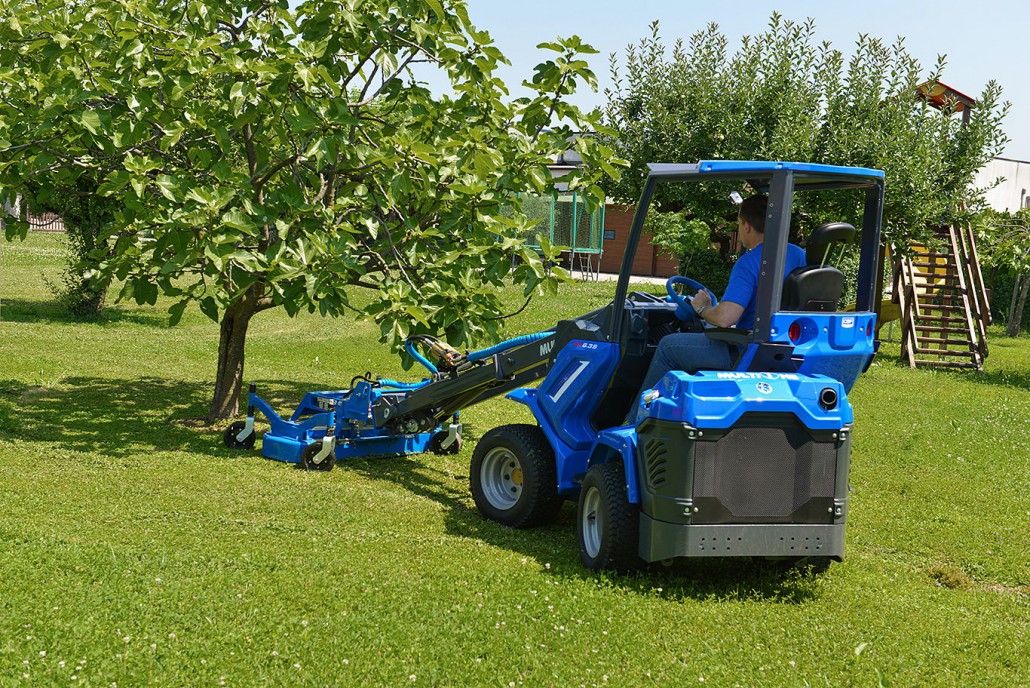

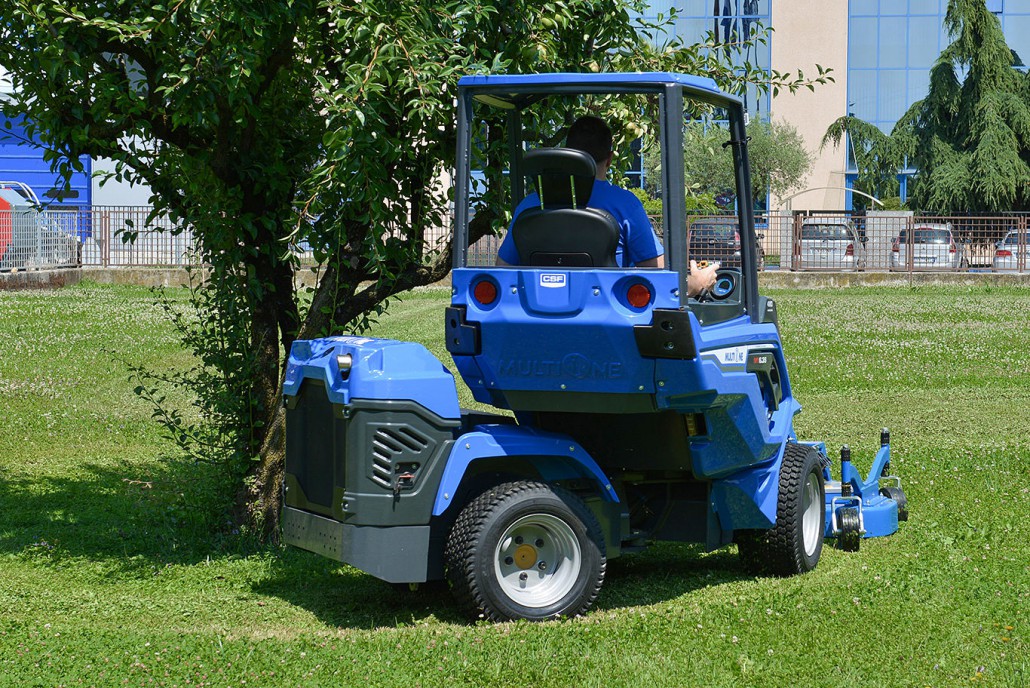

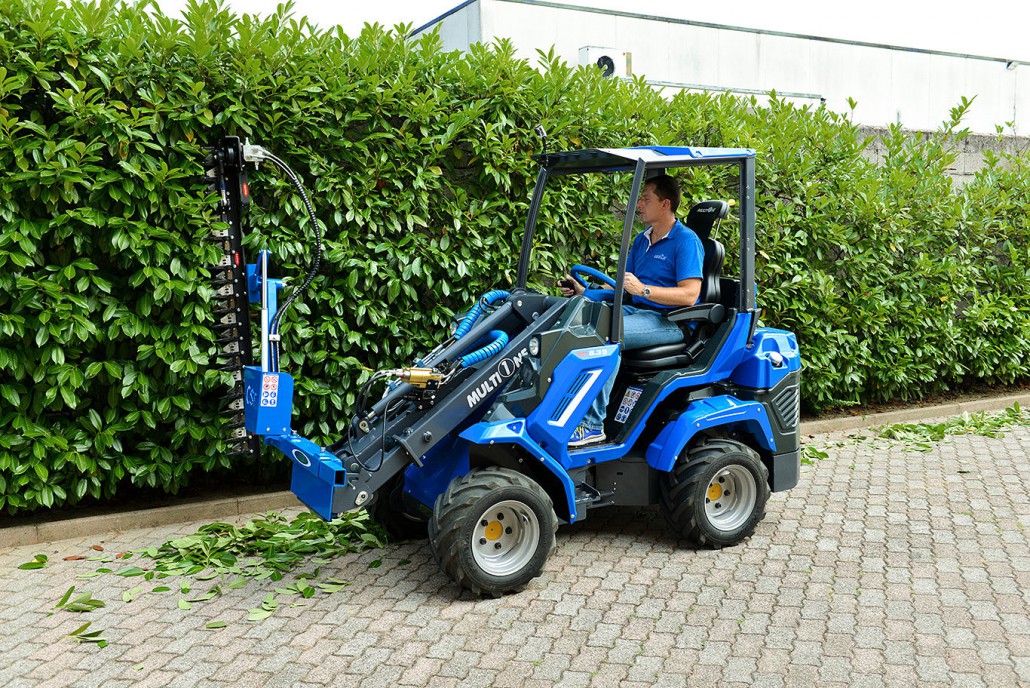

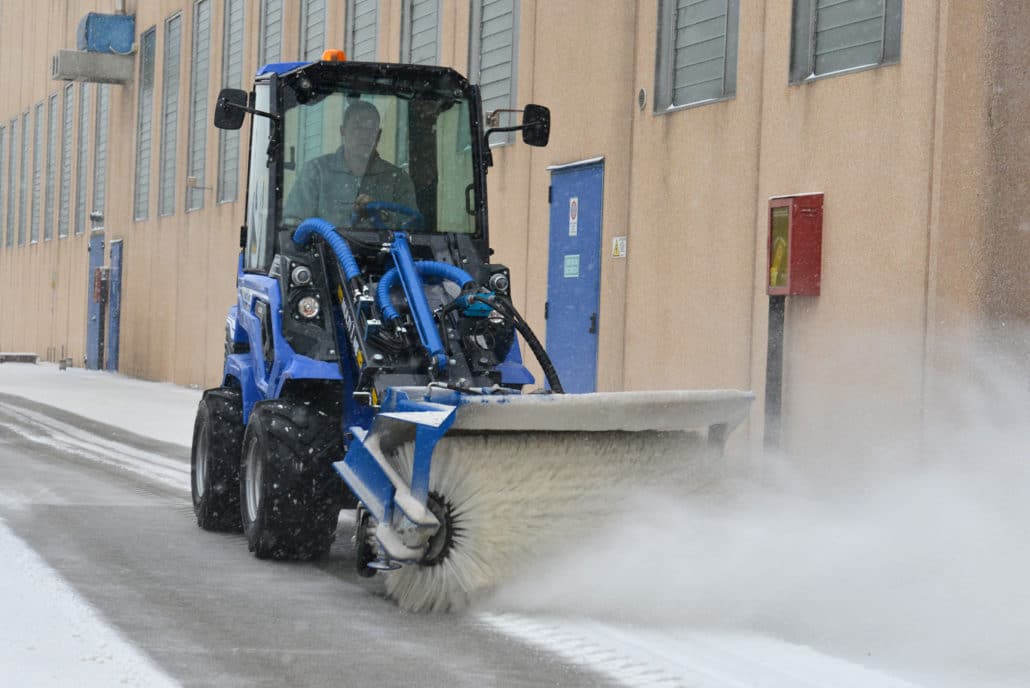

These compact loaders are perfectly suited for tight spaces, to be easily transported and to drive the most attachments for trenching, digging and excavation, cleaning, landscaping, construction and farming or agriculture. The 6 Series multifunction loaders are also ideal companions for DIY tasks, farms and municipal maintenance, clean-ups and rubble removal, all terrain forklift applications and general loading purposes.
The 6 series, thanks to the HI-Flow System, is compatible with most of the hydraulic attachment offerings of MultiOne . Come as standard with the new ACI system that allow the MultiOne operator to control the attachments movements without the need of separate control.
6 iDS Series Plus:
- Compact dimensions
- Great lifting height and capacity
- New Multi function joystick
- 60 l/min (15.8 GPM) output flow
- High torque (90Nm)
- Up to 23 km/h
- Poclain direct drive wheel motors
- Stage V and Tier 4 Final emission compliant

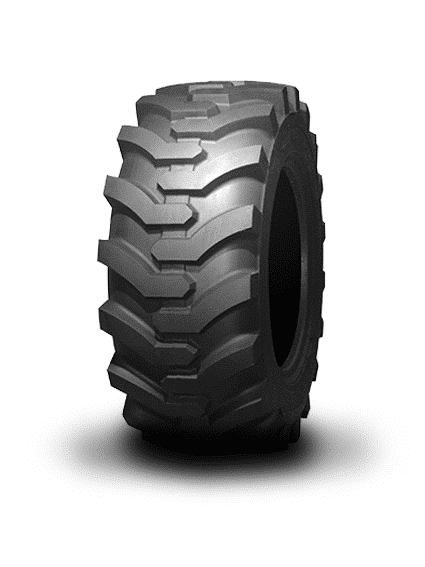

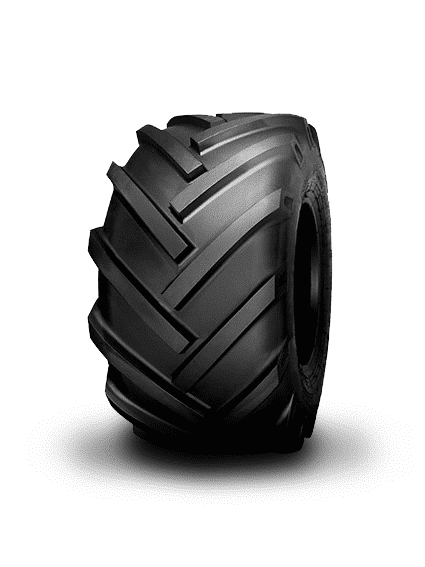

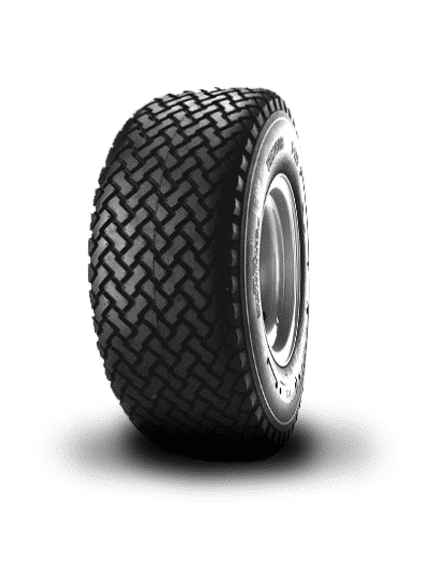

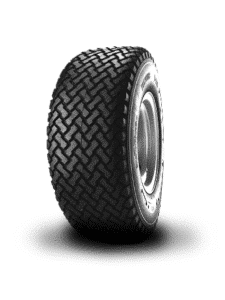

- Big tires available
- Very versatile
Features

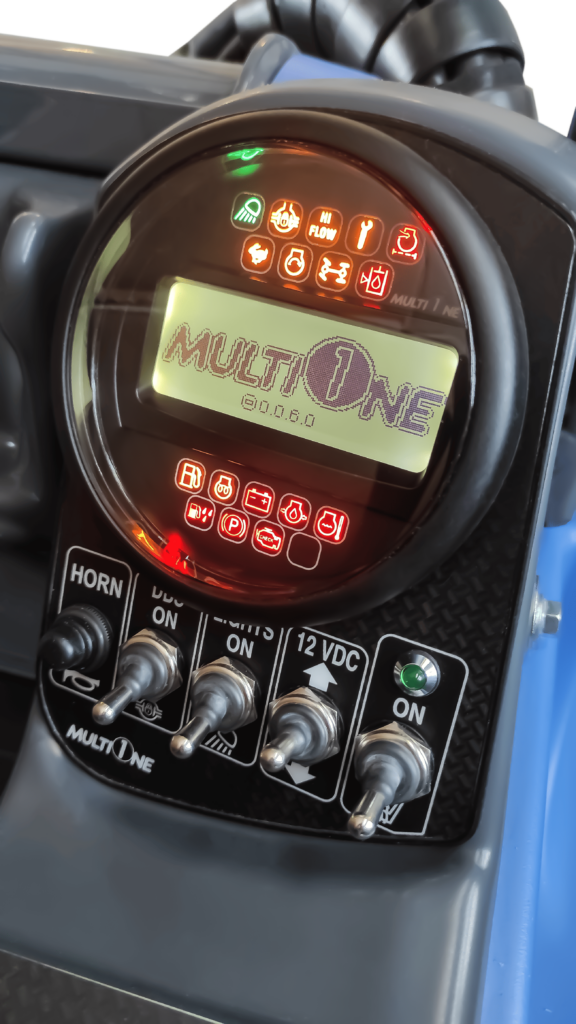

LCD graphic display with programmed service
LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)
Hydraulic Multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
Dbs (dynamic block system)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.
Hi flow
Additional pump that increases the outlets oil flow.
Radial piston wheel motor
High performance, high torque cam-lobe radial-piston hydraulic motors.

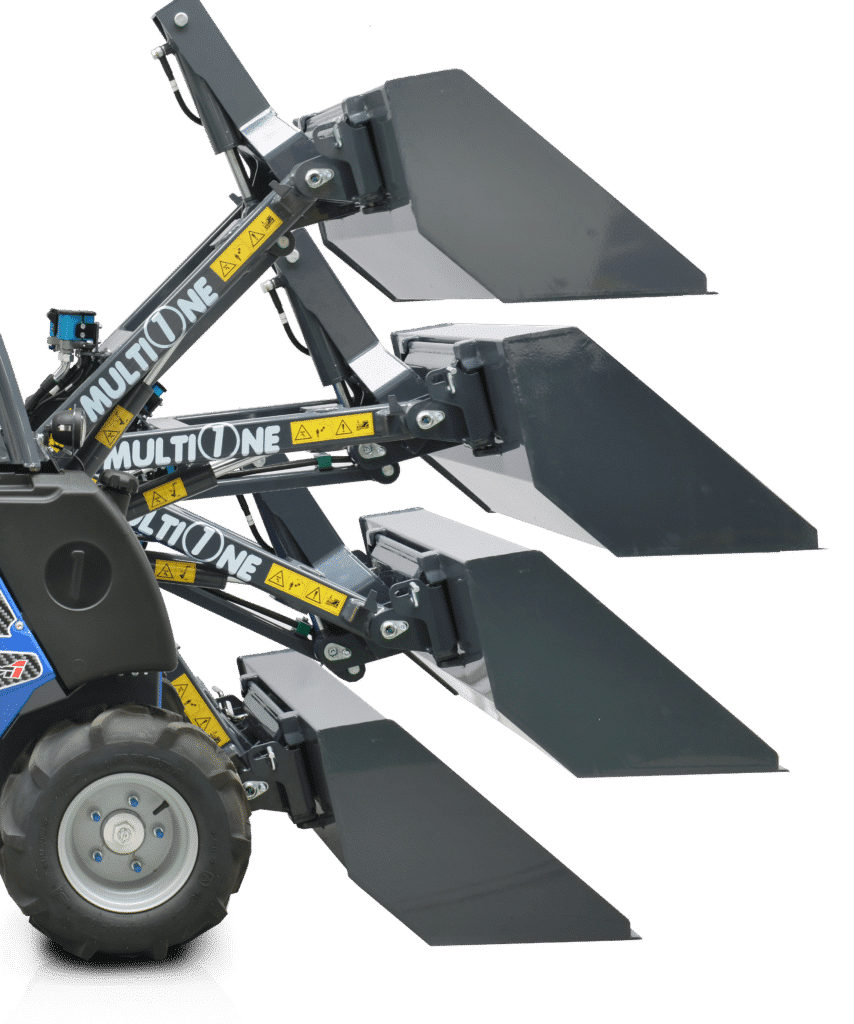

Self-levelling double-H telescopic boom
It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.
MultiOne’s telescopic boom:
- it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
- it has special anti-friction pads, which ensure operation, durability and lack of maintenance
- it assures an excellent front visibility at any time, even while moving and lifting
- thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.
Rops fops level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.
2 front working lights
2 front working lights to illuminate the working area
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
Multi functions joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.
Hydraulic oil cooler
System for cooling the hydraulic circuit oil
Mechanical parking brake
Mechanical parking brake
Technical data
| 6 iDS | |
|---|---|
| Lifting Capacity Straight, Max (*) | 1120 kg |
| Power | 25 hp |
| Speed | 11,5 – 23 km/h |
| Flow rate | 60 l/min |
| Lift Height | 2,92 m |
| Pushing Force (c) | 2050 kgf |
| Weight | 1470 kg |
(*) It’s the maximum load that can be lifted just off the ground when the machine is straight, with backweights and on firm, level ground. Boom not extended. Weight of attachment included, the max lifting capacity is the value indicated minus the weight of the attachment.
Standard equipment
2 front working light
2 front working light to illuminate the working area
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
DBS (Dynamic Block System)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.
HI-Flow
Additional pump that increases the outlets oil flow.
Hydraulic multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
Hydraulic oil cooler
System for cooling the hydraulic circuit oil
Multi function joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.
LCD graphic display with programmed service
LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)
Multi-disk parking brake
Multiple Disc Brakes spring loaded and hydraulically released.
Radial Piston Wheel motor
High performance, high torque cam-lobe radial-piston hydraulic motors.
ROPS-FOPS Level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.
Self-levelling double-H telescopic boom
It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.
MultiOne’s telescopic boom:
- it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
- it has special anti-friction pads, which ensure operation, durability and lack of maintenance
- it assures an excellent front visibility at any time, even while moving and lifting
- thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.
Customizations

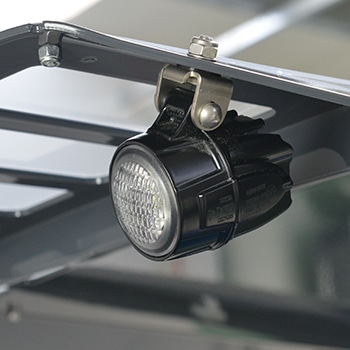

3 aux working led lights
3 auxiliary working LED lights for more visibility.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times

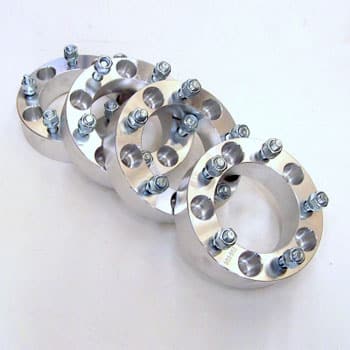

Wheel spacer
Spacers are used to make the machine wider and increase its stability.

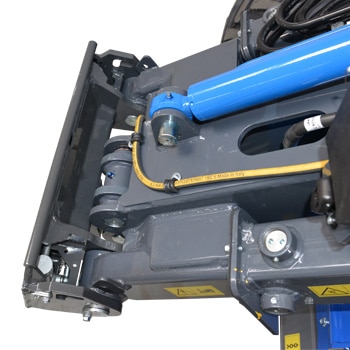

Automatic locking plate
On the automatic attachment plate the locking pins move hydraulically and are operated from cockpit.
This way the driver can stay on the seat when coupling and disconnecting non-hydraulic attachments.

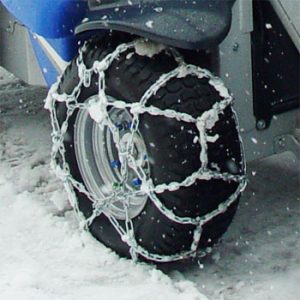

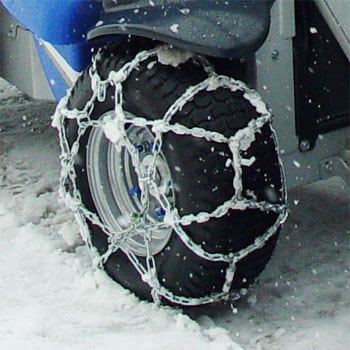

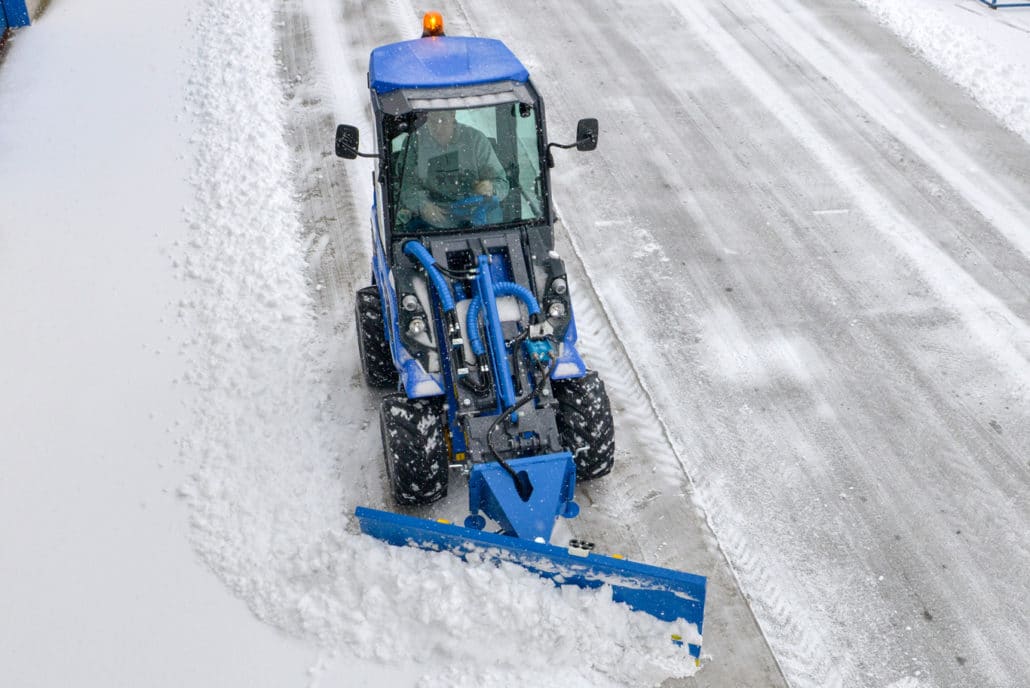

Snow chains
MultiOne snow chains improve traction on snow.
Floating boom valve
It allows the mounted attachments to follow the contours of the land perfectly. Ideal for applications in agriculture and in the care of the green areas.

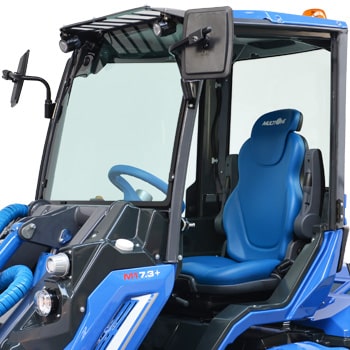

Smart Cabin
The most competitive solution for the operator who wants to improve working conditions thanks to a light cabin which limits the discomfort created by weathering.

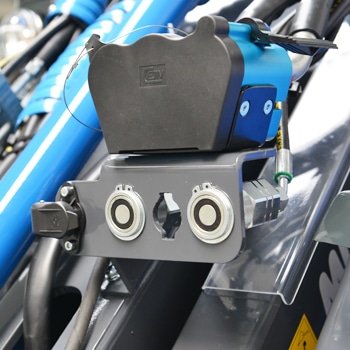

Aux hydraulic outlets
Additional hydraulic outlets (front and/or rear).
Backup warning beeper
It help keep everyone safer during MultiOne machine operation.

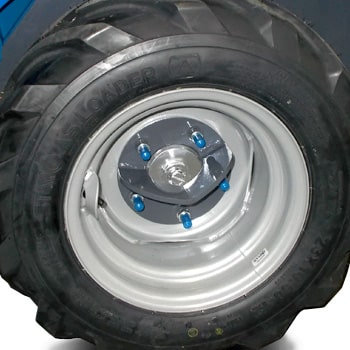

Tie down bracket on wheel hub
The tie down brackets mounted on wheel hub makes easier to tie down the machine on a trailer.

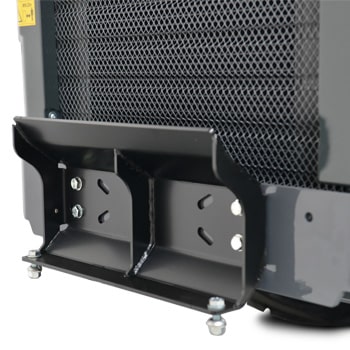

Attachment coupling plate for rear mounting
It is used to assemble attachments on the rear of the machine.

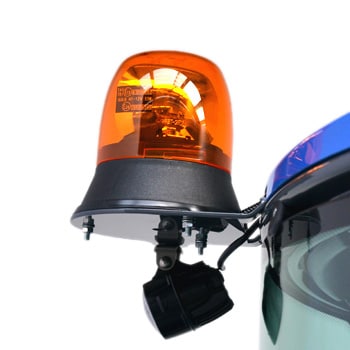

Beacon light
Beacon light ensures more visibility and safety.
Heating system
Three-way heating with adjustable air flows and temperature.
Engine block heater
It is an ideal device for cold temperatures.
The system keeps the engine at an optimal temperature for easy starting with very cold climates.

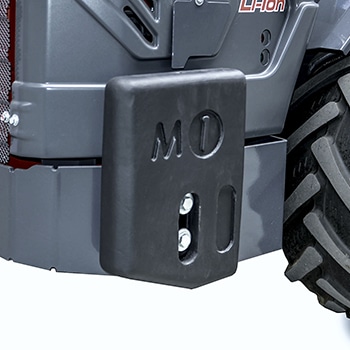

Rear side weights
Rear side weights are used to increase the lifting capacity of the machine. It’s possibile to mount them also with other rear weights mounted.
Two kit (80 kg per side, 160 kg total) can be mounted, screw is required.

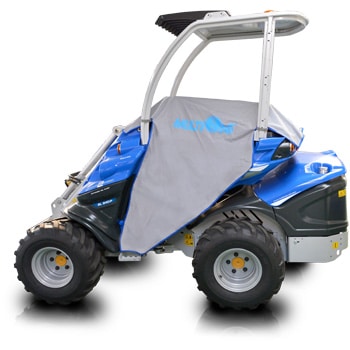

Driver area cover
Covers the machine interior, protects against rain, snow, etc.

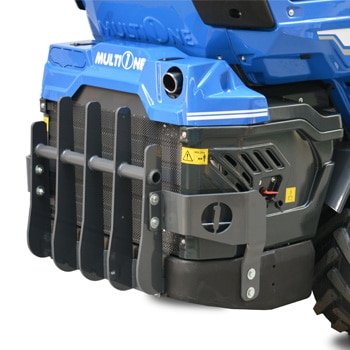

Rear bull bar
Rear bull bar.

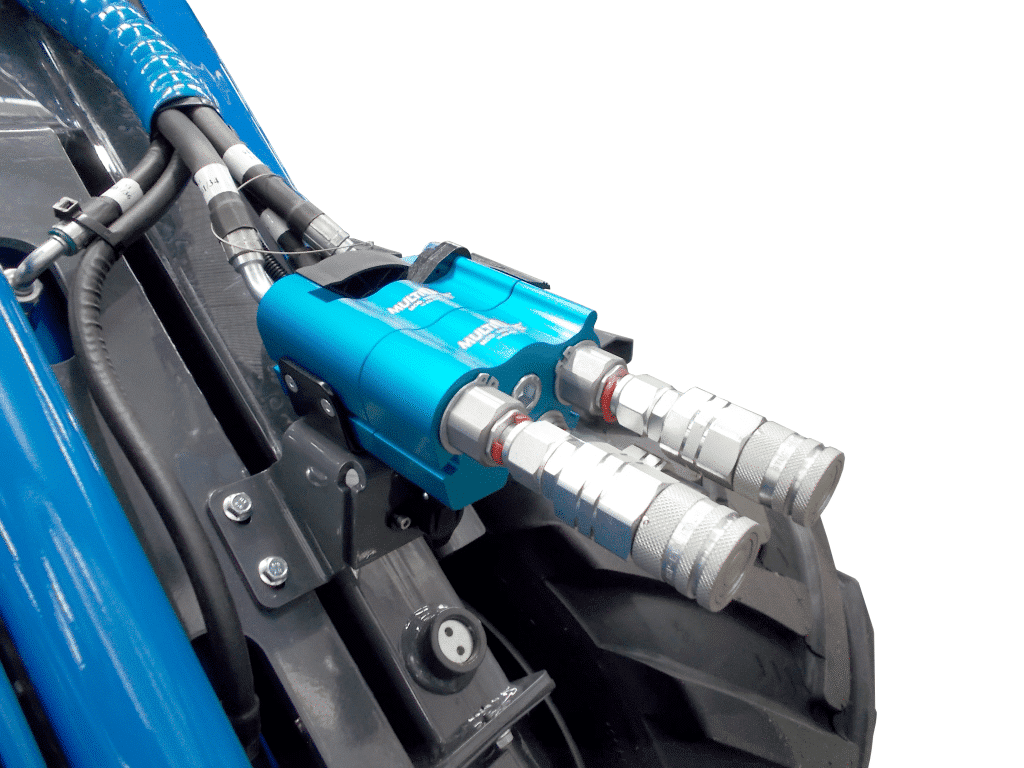

Multiconnector to quick coupling 3 lines adapter
Adaptor for machines, in order to connect standard flat face single lines connections. Suggested for attachments equipped with hydraulic cylinders, not with hydraulic motors. The adaptor has 3 lines to fulfill the connections with any kind of attachments.

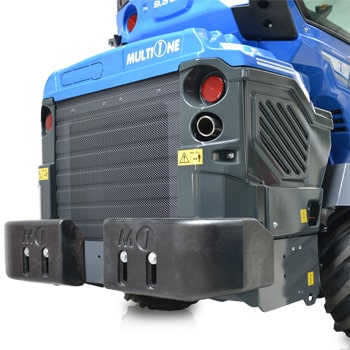

Rear weights
Backweights are used to increase the lifting capacity of the machine. They are to be mounted on the rear of the machine.

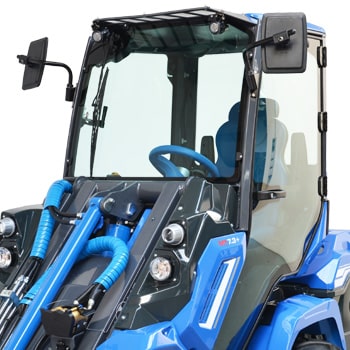

Fully enclosed cab (glass)
This is the best insulation system for the driver to protect him from cold, wind, rain, and snow.
Easy access thanks to the large door and the compass glass opening.

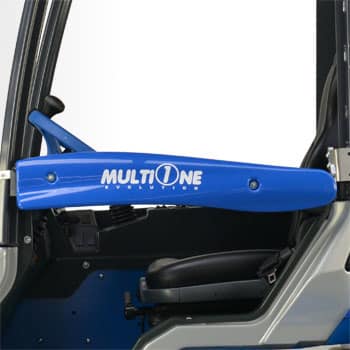

Left protection bar for operator
A side-protection bar that has been certified and awarded as a techincal safety innovating system. It is placed on the left side of the machine to protect the operator from falling out of the vehicle. It can be locked and unlocked very quickly thanks to a special mechanism.

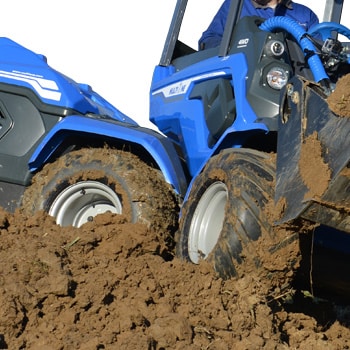

Torque divider
It acts on all four wheels simultaneously to attain maximum performance. Traction even on impossible grounds with mud or snow.

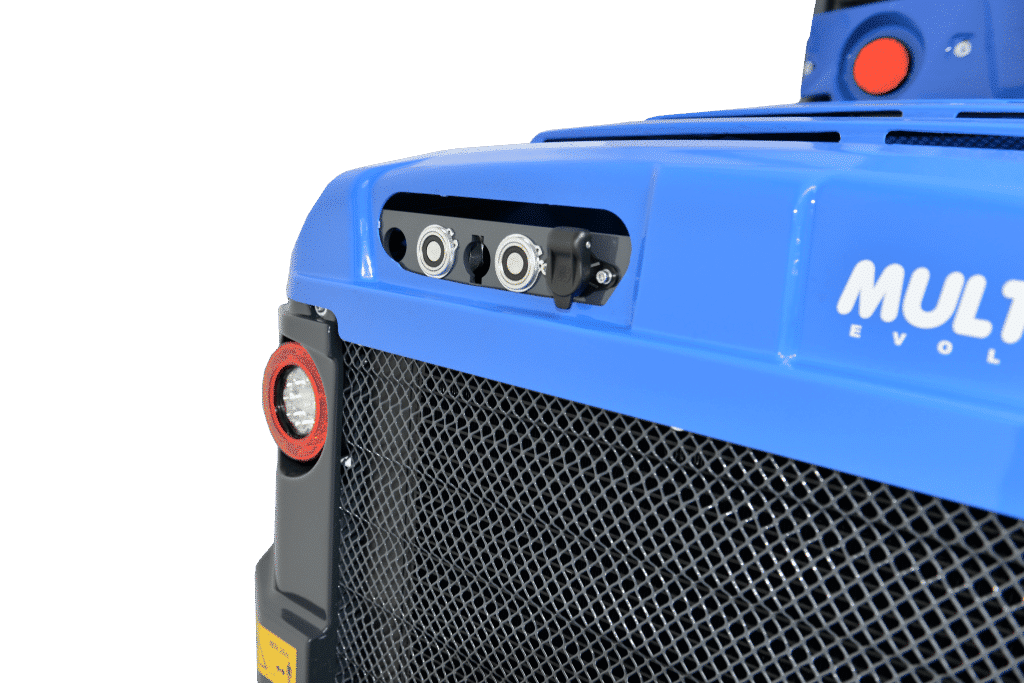

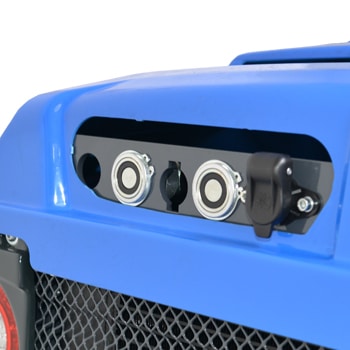

Rear outlets
They are used to mount on the rear side attachments. The rear outlets are controlled by the control panel.

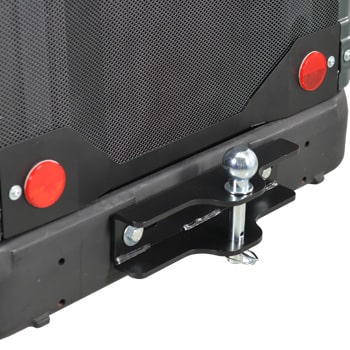

Trailer coupling
Rear tow hook with double connection: with tow ball (car type) or tow pin (agricultural type).

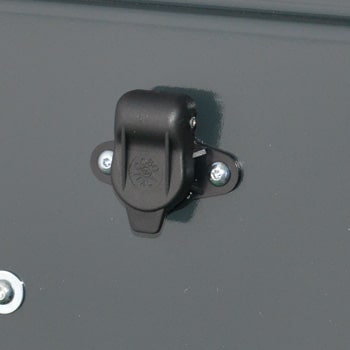

12V rear electric socket
12 Volt rear electric socket to connect the attachments.

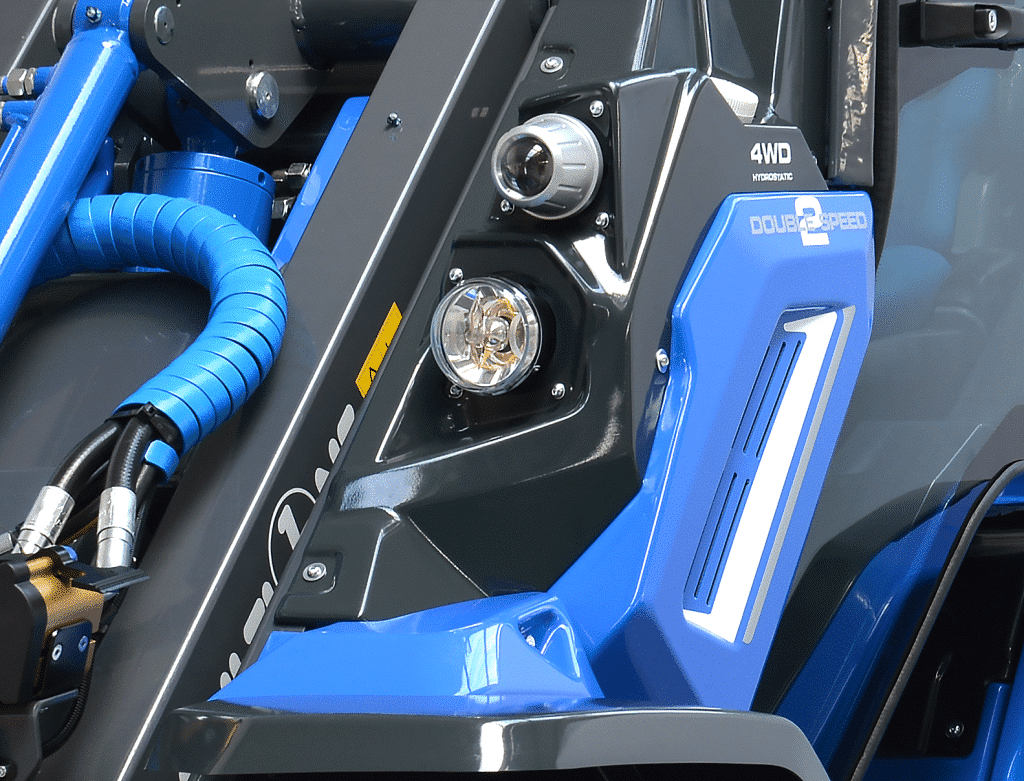

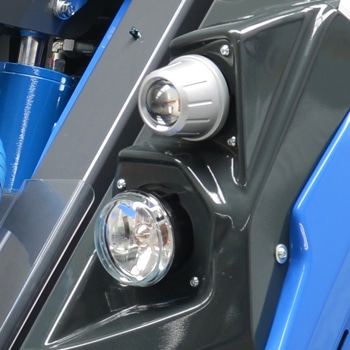

LED road lights
LED road lights (front and rear) to illuminate the road, turning light, beacon, mirrors.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times
