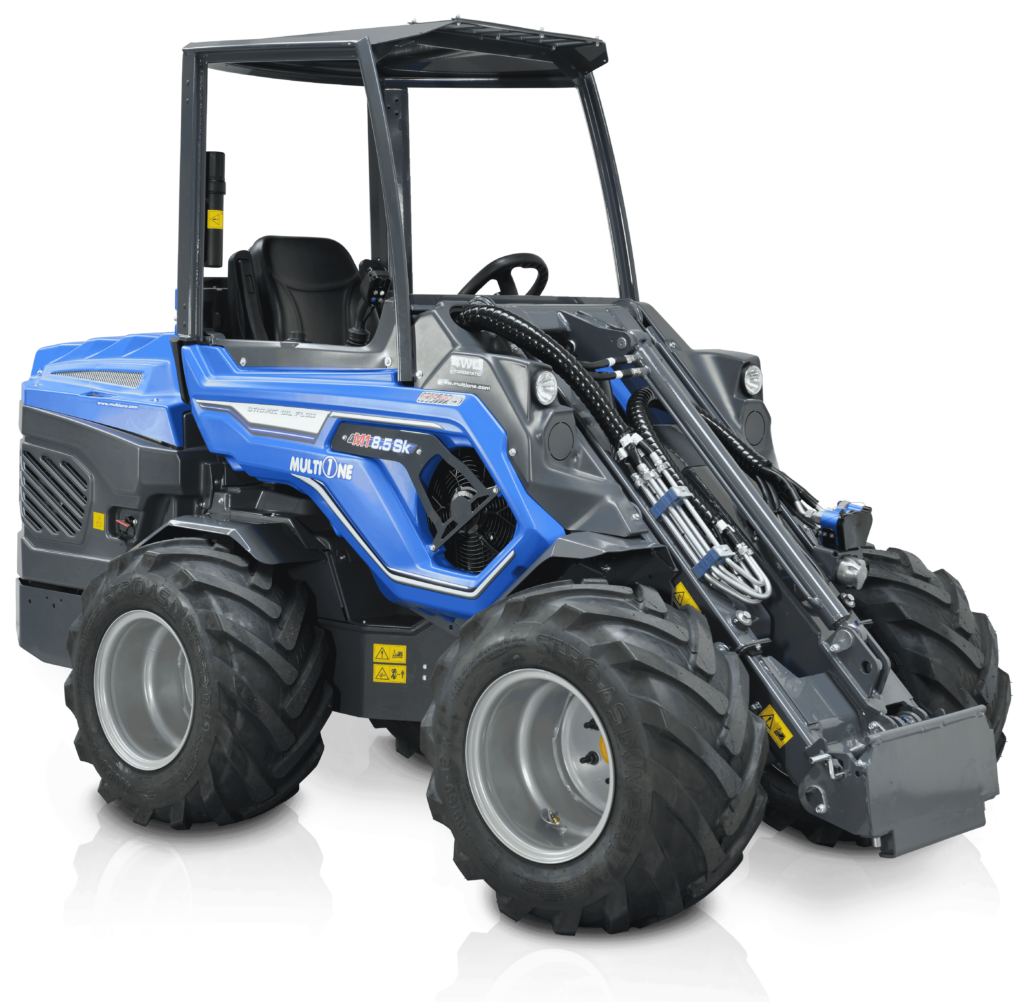

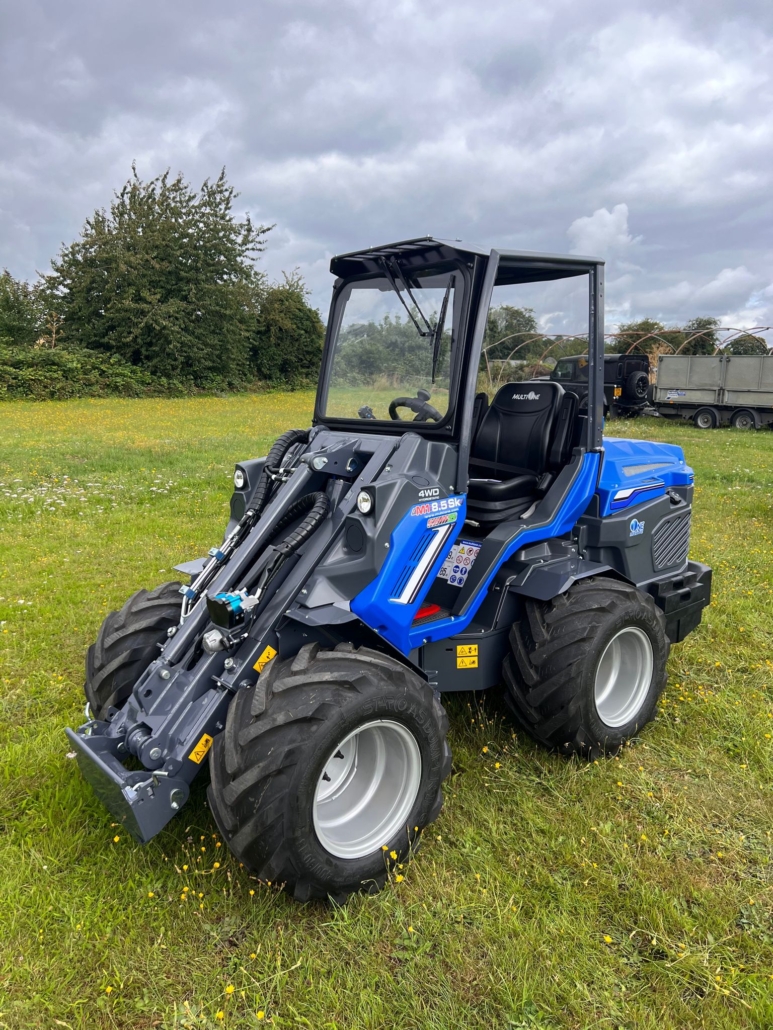

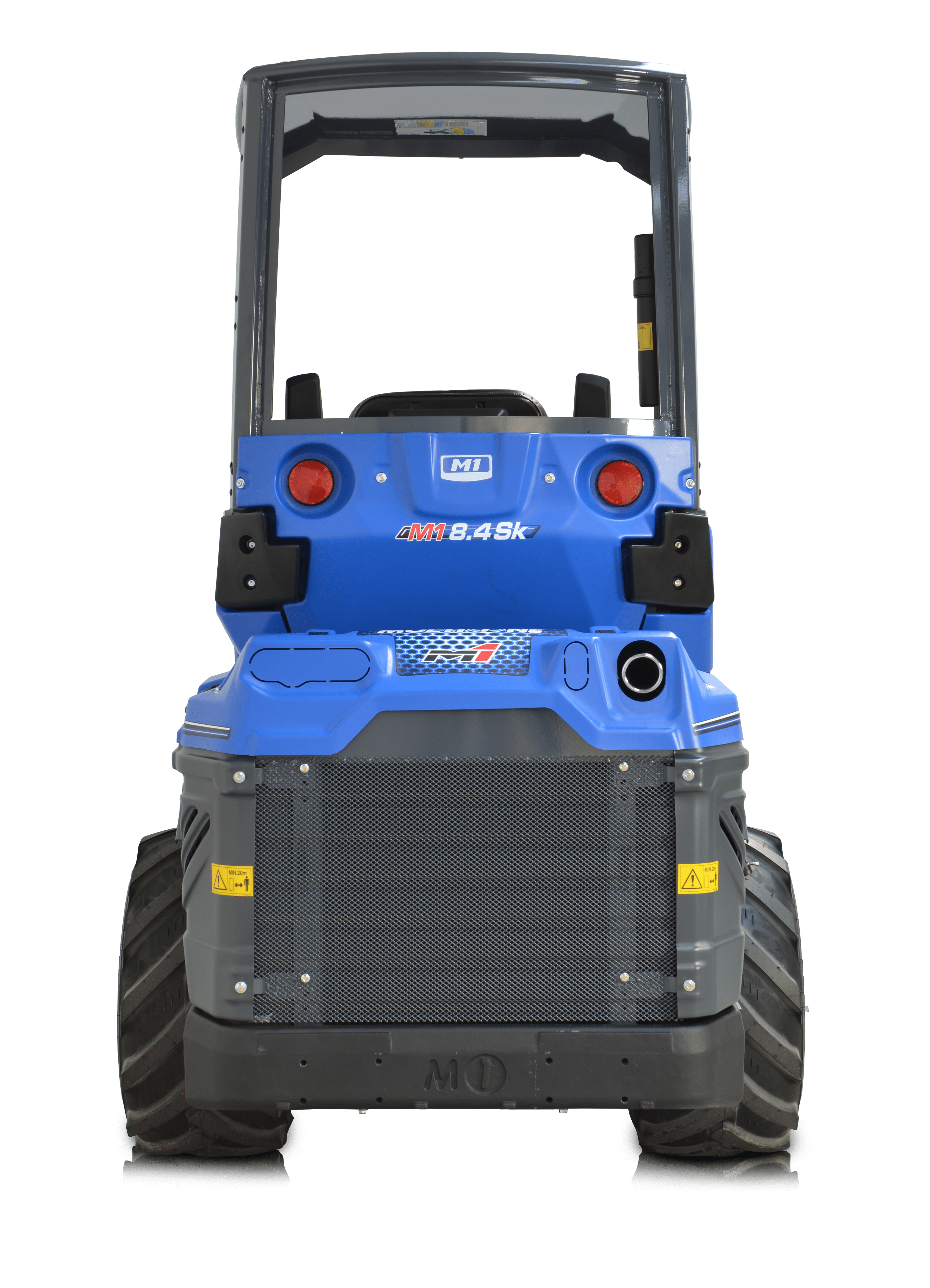

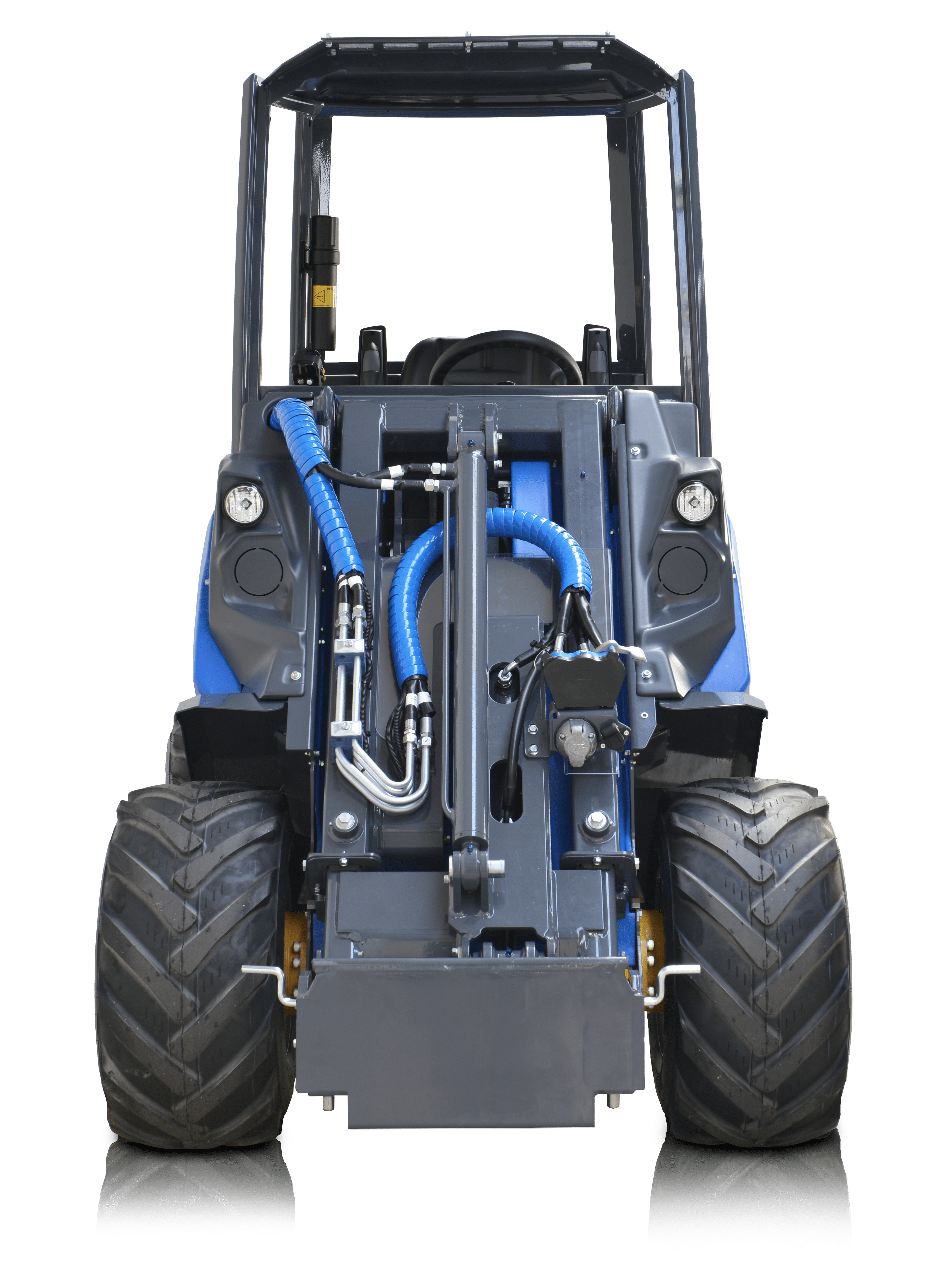

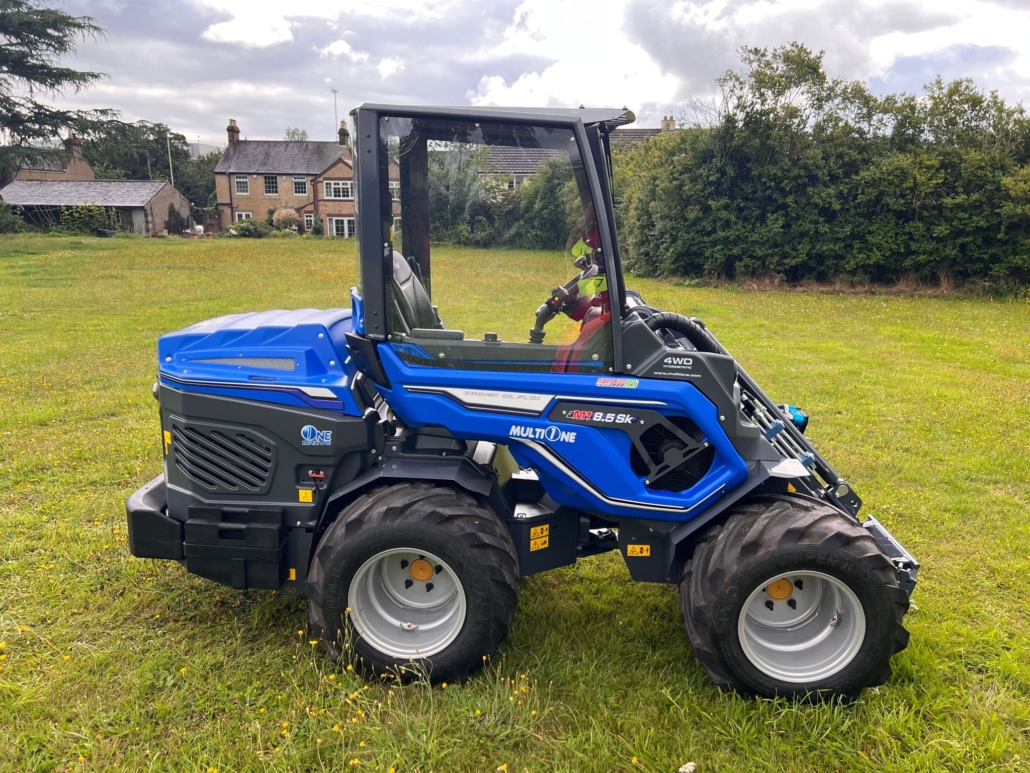

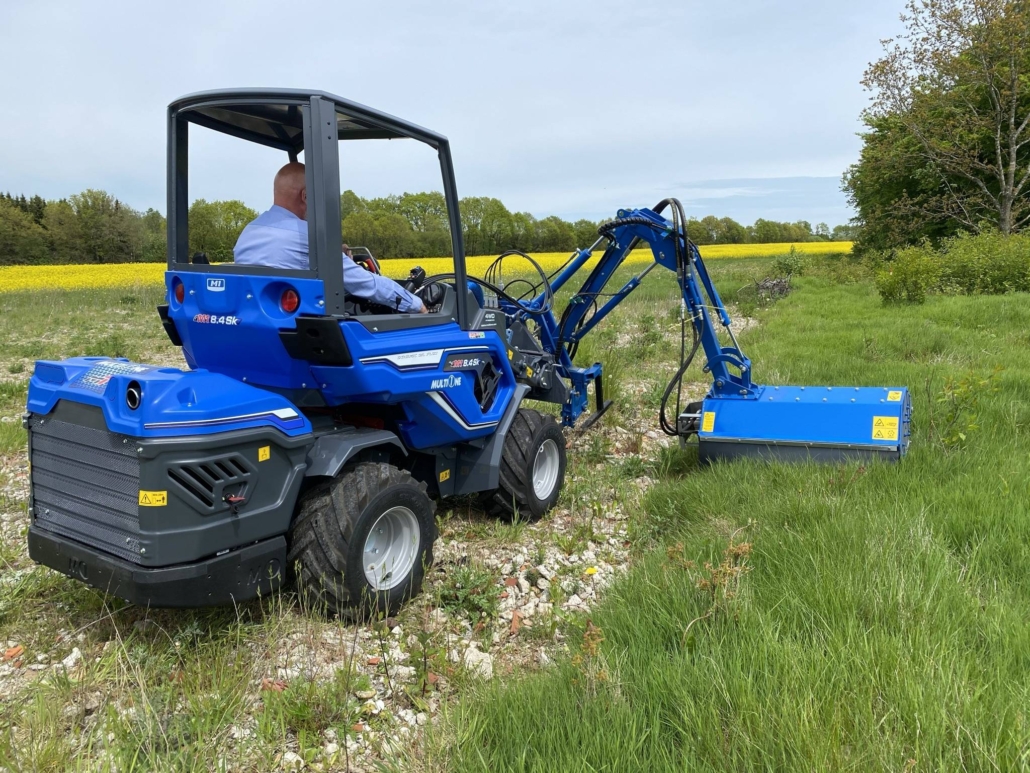

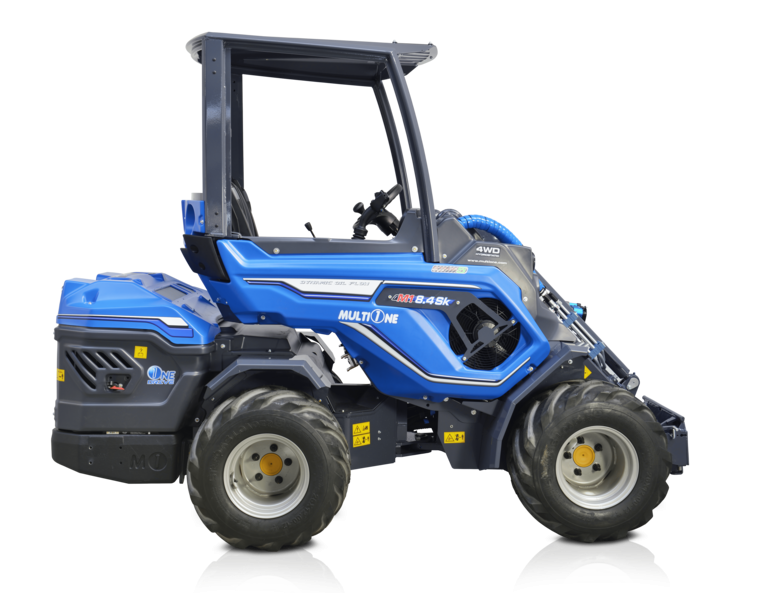

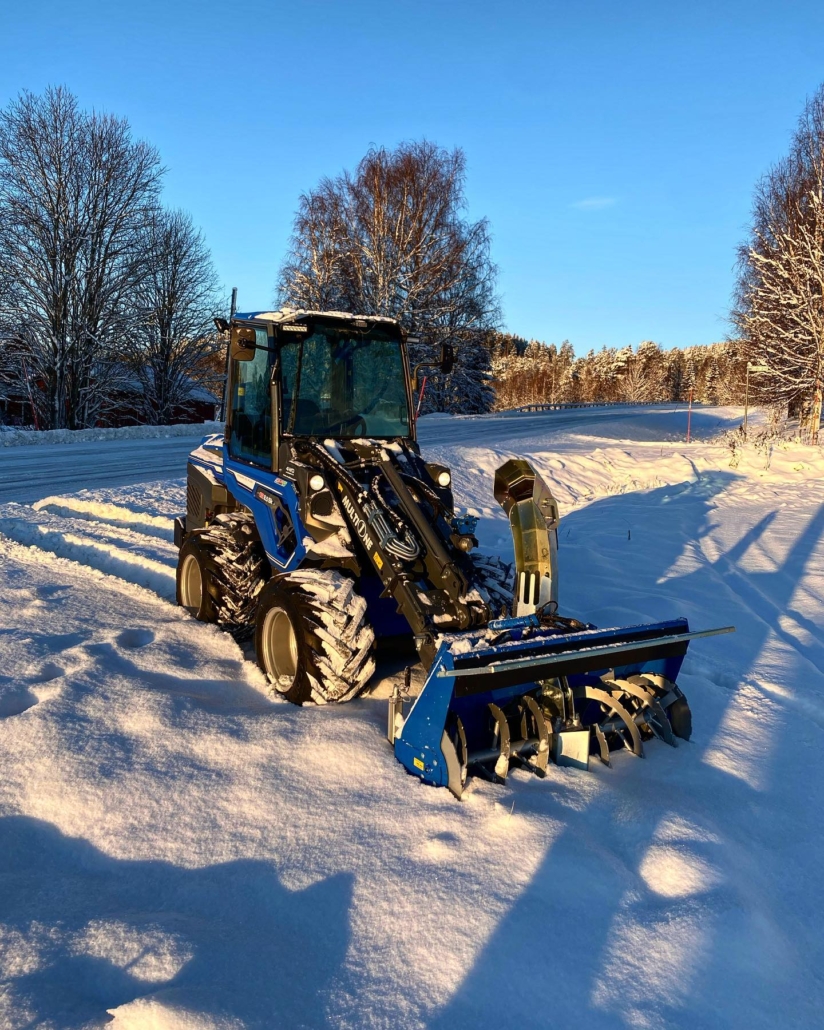

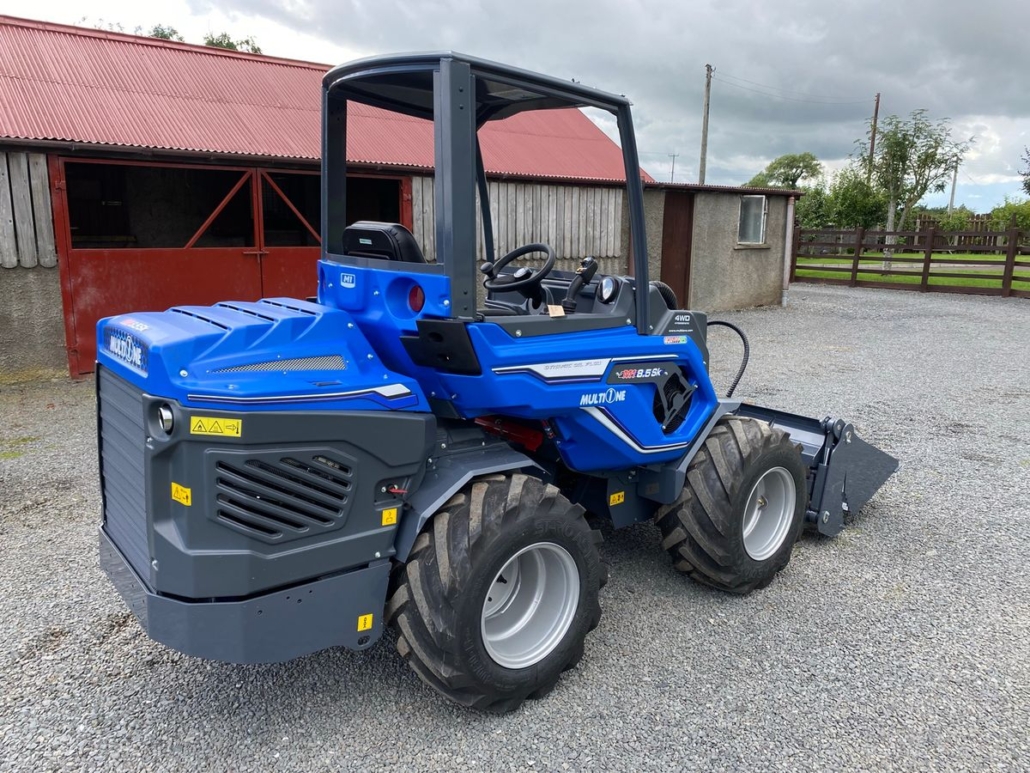

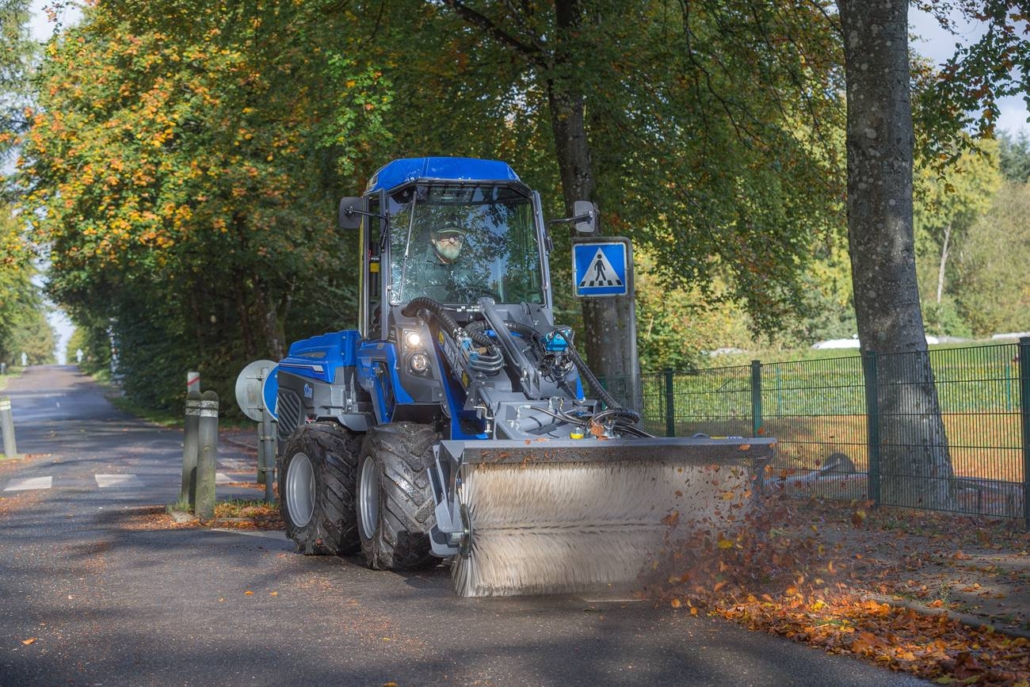

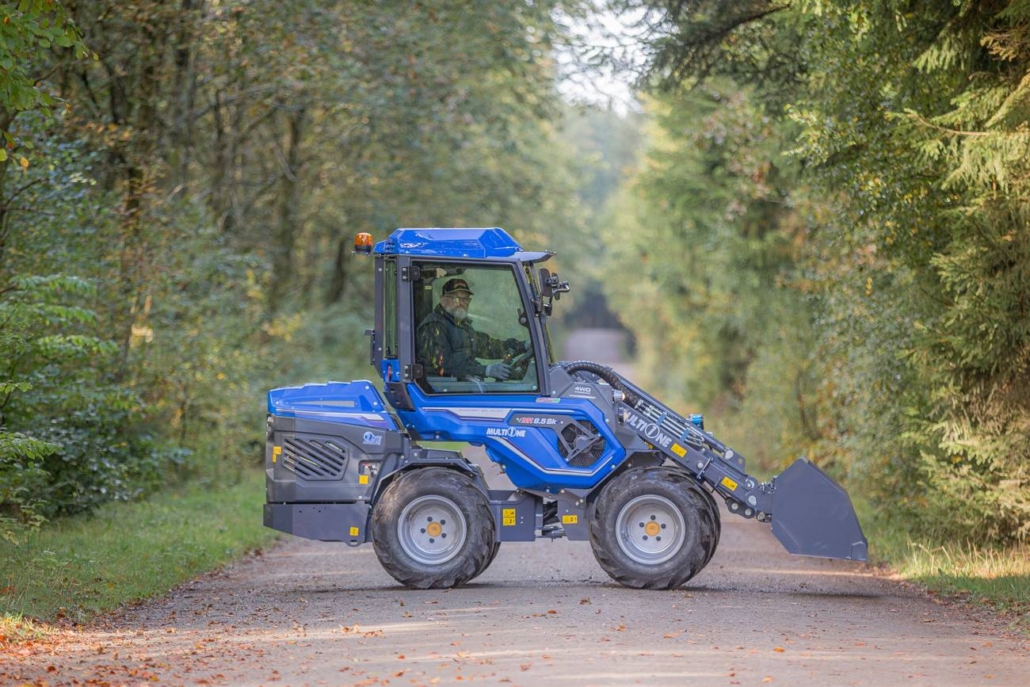

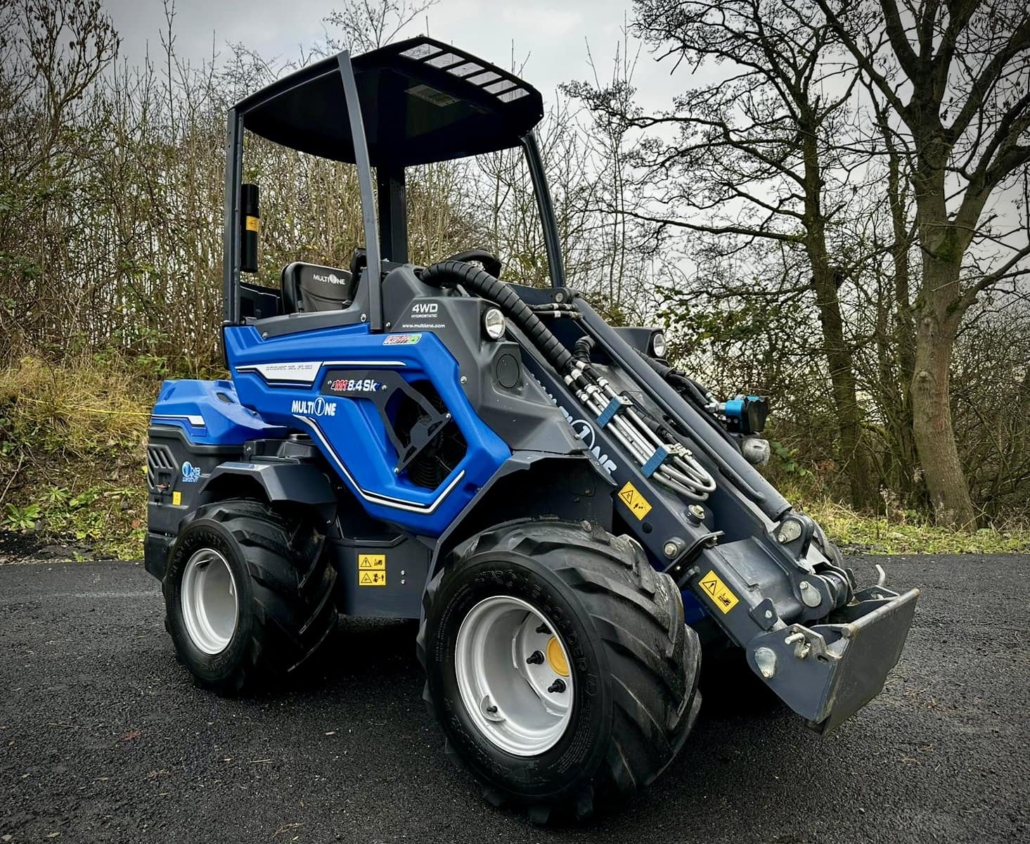

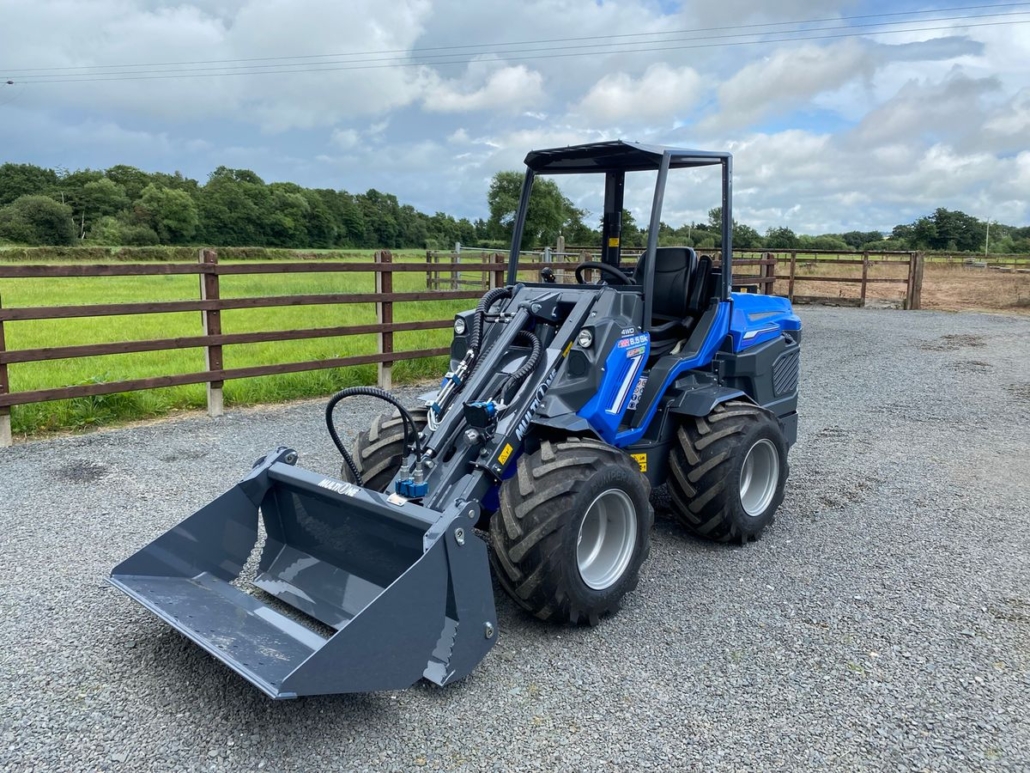

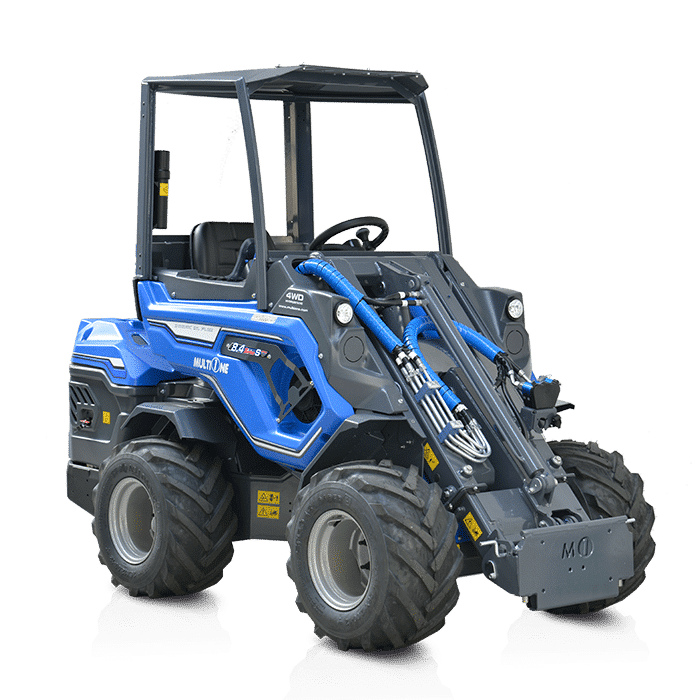

8 series
MultiOne 8 series is the best solution in the market of articulated mini loaders for those who need all the incredible features of the new series plus high torque and high speed.
The 8 series has the same new frame of 7 series but it’s equipped with a more powerful engine and direct drive motors that grant- massive traction unequalled by competitors. The stability and reliability features of these new revolutionary mini loaders include advanced and modern frame design, low centre of weight for amazing stability, integrated back weights and heavy duty hot forged articulation joint.
Design features include a wide, comfortable and easily accessible driver area and a luxury cab with a/c system.
It’s the ideal choice for tough jobs in which additional power, traction and comfort are needed.
8 SERIES PLUS:
- Advanced and modern frame design
- Integrated backweights
- Powerful engine and direct drive motors
- A/C for cabin
Features
Hydraulic oil cooler
System for cooling the hydraulic circuit oil

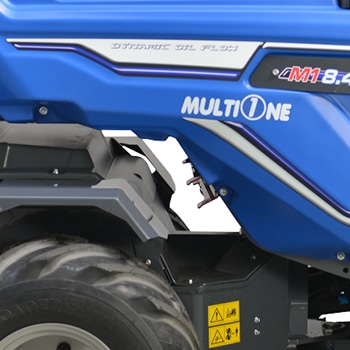

Unbreakable body panels
The resistance and flexibility of the compound used on the new body cover let the panel absorb shocks, deforms and go back to original shape.
Dbs (dynamic block system)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.
Radial piston wheel motor
High performance, high torque cam-lobe radial-piston hydraulic motors.
Torque divider
It acts on all four wheels simultaneously to attain maximum performance. Traction even on impossible grounds with mud or snow.
Cruise control
The cruise control is a great feature of OneDrive, as all attachments that require constant speed are now very easy to run: just set the working speed and the OneDrive will do the job for you.
Constant speed will give perfect results on the job site with a variety of attachments. The Cruise Control is activated by the joystick.
Mechanical parking brake
Mechanical parking brake
Hydraulic Multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
LCD graphic display with programmed service
LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)
Multi functions joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.
Electronic throttle control
ETC – Electronic Throttle Control
2 front working lights
2 front working lights to illuminate the working area

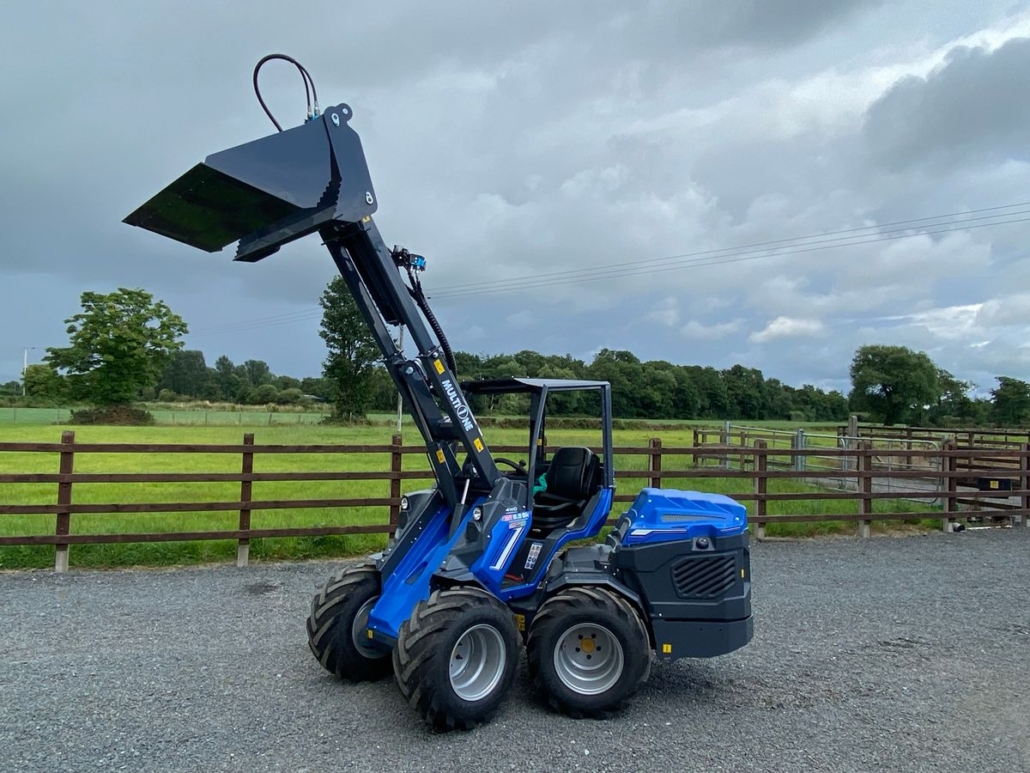

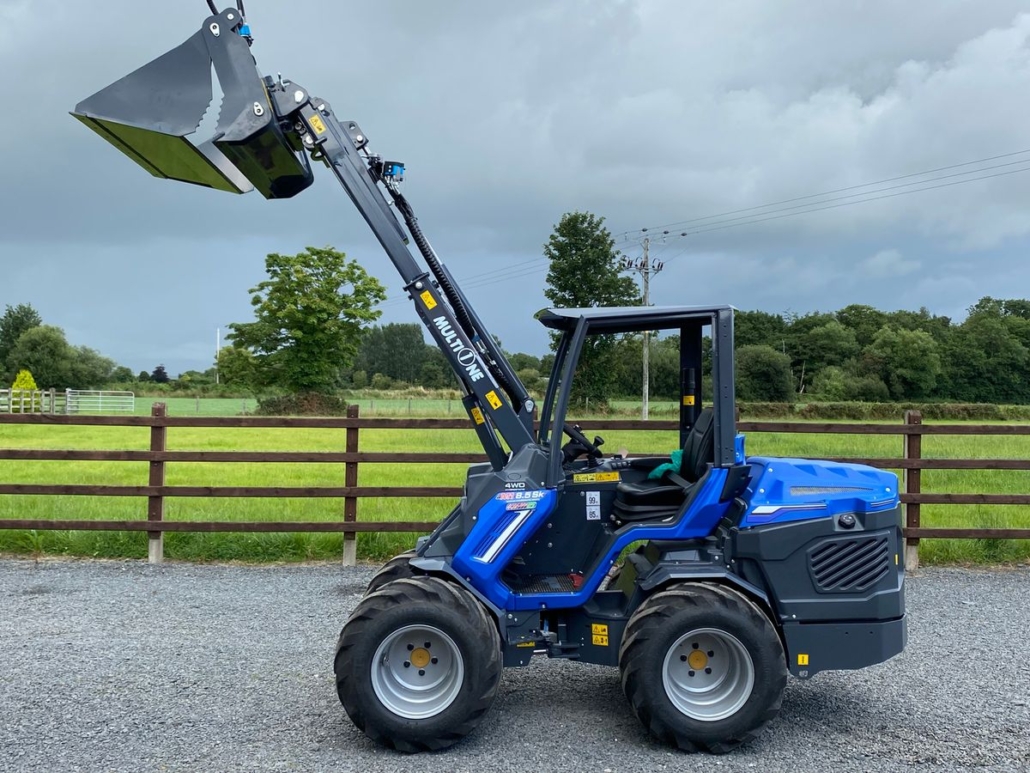

Self-levelling double-H telescopic boom
It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.
MultiOne’s telescopic boom:
- it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
- it has special anti-friction pads, which ensure operation, durability and lack of maintenance
- it assures an excellent front visibility at any time, even while moving and lifting
- thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
Rops fops level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.
Ergonomic heated seat
Ideal for cold climates, it significantly increases the comfort of the machine.
One-drive
The Multione OneDrive increases the transmission performance while reducing heat and fuel consumption.
The system provides a smooth but rock solid control on the foot pedals and reduces the fatigue during long operation hours.
It allows a wider speed range control, and the improved efficiency allows to reach very high travel speed and increases the components lifetime.
Technical data
| 8.4S K Stage IIIA | 8.4S K Stage V | 8.5S K Stage III B | 8.5S K Stage V | |
|---|---|---|---|---|
| Lifting Capacity Straight, Max (*) | 1470 kg | 1470 kg | 1640 kg | 1640 kg |
| Power | 37,5 hp | 26 hp | 57 hp | 57 hp |
| Speed | 13 – 26 km/h | 11 – 22 km/h | 11 – 22 km/h | 13 – 26 km/h |
| Flow rate | 67 l/min | 52 l/min | 70 l/min | 83 l/min |
| Lift Height | 2,98 m | 2,98 m | 3,2 m | 3,2 m |
| Pushing Force (c) | 2050 kgf | 2050 kgf | 2190 kgf | 2190 kgf |
| Weight | 1680 kg | 1680 kg | 1790 kg | 1790 kg |
(1) Maximum speed that can be achieved with the largest diameter tires available, on a flat surface and machine without attachments.
(2) Tipping limit, when the machine is straight, with rear weights and boom lifted just off the ground. Weight of attachment included.
(3) Maximum load that can be lifted just off the ground when the machine is straight and with rear weights. Weight of attachment is included.
Note: Refer to the Operator’s manual for the comprehensive load diagram.
Standard equipment
Torque divider
It acts on all four wheels simultaneously to attain maximum performance. Traction even on impossible grounds with mud or snow.
2 front working light
2 front working light to illuminate the working area
2 speed
Electro-hydraulic speed regulation.
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
ACI
ACI system allows the driver to control the attachments movements without the need for separate control boxes, cables or additional wiring.
The connection to the attachments is made by a 7-poles metal plug.
Cruise Control
The cruise control is a great feature of OneDrive, as all attachments that require constant speed are now very easy to run: just set the working speed and the OneDrive will do the job for you.
Constant speed will give perfect results on the job site with a variety of attachments. The Cruise Control is activated by the joystick.
DBS (Dynamic Block System)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.
Electronic Throttle Control
ETC – Electronic Throttle Control
Ergonomic heated seat
Ideal for cold climates, it significantly increases the comfort of the machine.
HI-Flow
Additional pump that increases the outlets oil flow.
Hydraulic multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
Hydraulic oil cooler
System for cooling the hydraulic circuit oil
Multi function joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.
LCD graphic display with programmed service
LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)
Multi-disk parking brake
Multiple Disc Brakes spring loaded and hydraulically released.
One Drive
OneDrive is a brand new transmission system with a performance output over 30% higher than standard circuit. The DBS and Torque Divider and the brand new MultiOne Cruise Control are integrated.
Radial Piston Wheel motor
High performance, high torque cam-lobe radial-piston hydraulic motors.
ROPS-FOPS Level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.
Self-levelling double-H telescopic boom
It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.
MultiOne’s telescopic boom:
- it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
- it has special anti-friction pads, which ensure operation, durability and lack of maintenance
- it assures an excellent front visibility at any time, even while moving and lifting
- thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.
Unbreakable Body Panels
The resistance and flexibility of the compound used on the new body cover let the panel absorb shocks, deforms and go back to original shape.
Customizations
Snow chains
MultiOne snow chains improve traction on snow.
3 aux working led lights
3 auxiliary working LED lights for more visibility.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times
Attachment coupling plate for rear mounting
It is used to assemble attachments on the rear of the machine.
Engine block heater
It is an ideal device for cold temperatures.
The system keeps the engine at an optimal temperature for easy starting with very cold climates.
Backup warning beeper
It help keep everyone safer during MultiOne machine operation.
Aux hydraulic outlets
Additional hydraulic outlets (front and/or rear).
Heating system
Three-way heating with adjustable air flows and temperature.
Left protection bar for operator
A side-protection bar that has been certified and awarded as a techincal safety innovating system. It is placed on the left side of the machine to protect the operator from falling out of the vehicle. It can be locked and unlocked very quickly thanks to a special mechanism.
Multiconnector to quick coupling 3 lines adapter
Adaptor for machines, in order to connect standard flat face single lines connections. Suggested for attachments equipped with hydraulic cylinders, not with hydraulic motors. The adaptor has 3 lines to fulfill the connections with any kind of attachments.
Rear outlets
They are used to mount on the rear side attachments. The rear outlets are controlled by the control panel.
Wheel spacer
Spacers are used to make the machine wider and increase its stability.
LED road lights
LED road lights (front and rear) to illuminate the road, turning light, beacon, mirrors.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times
Automatic locking plate
On the automatic attachment plate the locking pins move hydraulically and are operated from cockpit.
This way the driver can stay on the seat when coupling and disconnecting non-hydraulic attachments.
Beacon light
Beacon light ensures more visibility and safety.
Smart Cabin
The most competitive solution for the operator who wants to improve working conditions thanks to a light cabin which limits the discomfort created by weathering.
Driver area cover
Covers the machine interior, protects against rain, snow, etc.
Rear side weights
Rear side weights are used to increase the lifting capacity of the machine. It’s possibile to mount them also with other rear weights mounted.
Two kit (80 kg per side, 160 kg total) can be mounted, screw is required.

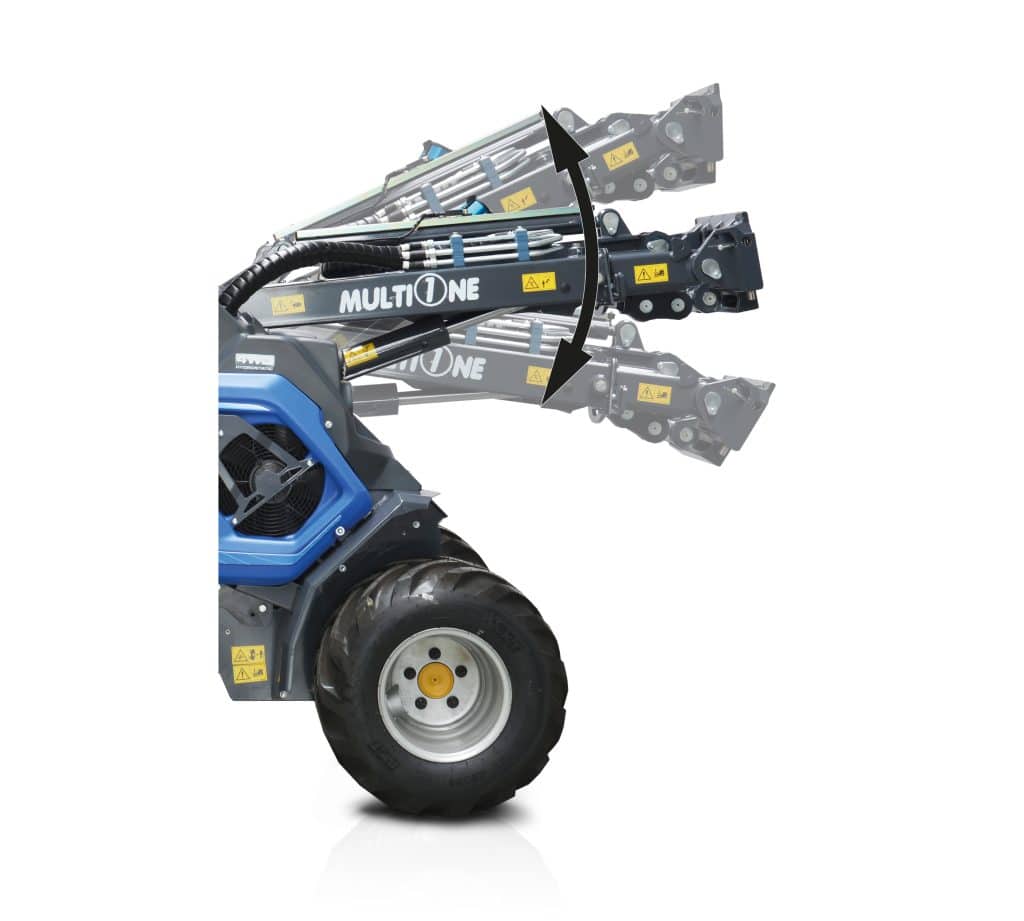

Floating boom valve
It allows the mounted attachments to follow the contours of the land perfectly. Ideal for applications in agriculture and in the care of the green areas.
Rear weights
Backweights are used to increase the lifting capacity of the machine. They are to be mounted on the rear of the machine.

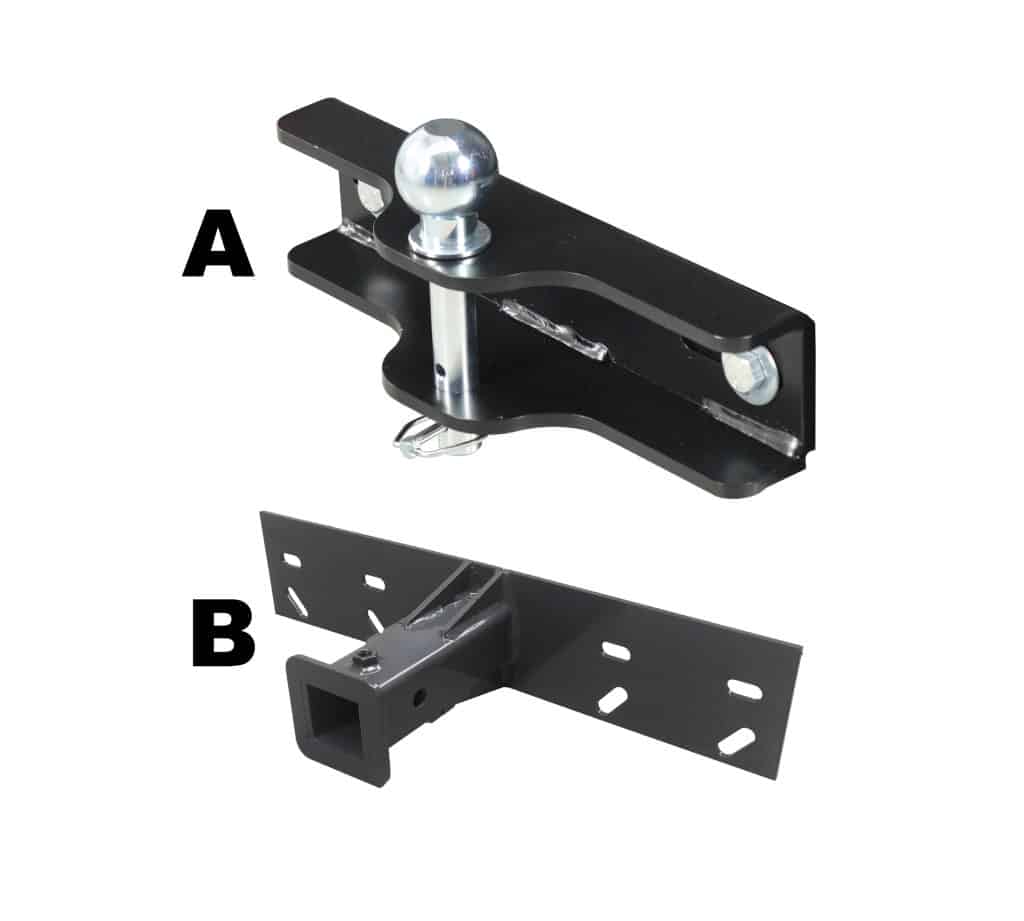

Trailer coupling
Rear tow hook with double connection: with tow ball (car type) or tow pin (agricultural type).
12V rear electric socket
12 Volt rear electric socket to connect the attachments.
Tie down bracket on wheel hub
The tie down brackets mounted on wheel hub makes easier to tie down the machine on a trailer.
Rear bull bar
Rear bull bar.
One Drive
OneDrive is a brand new transmission system with a performance output over 30% higher than standard circuit. The DBS and Torque Divider and the brand new MultiOne Cruise Control are integrated.
Fully enclosed cab (glass)
This is the best insulation system for the driver to protect him from cold, wind, rain, and snow.
Easy access thanks to the large door and the compass glass opening.
